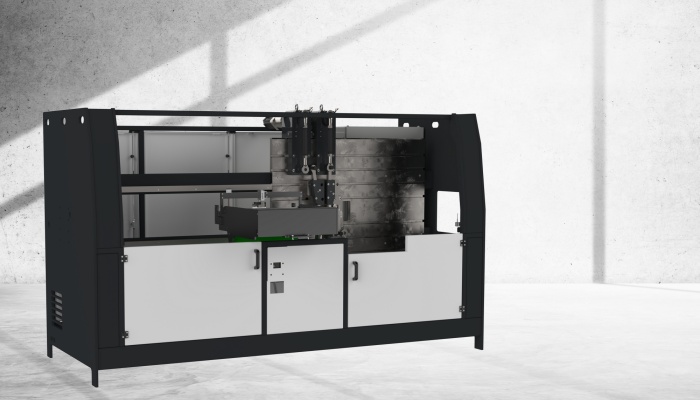

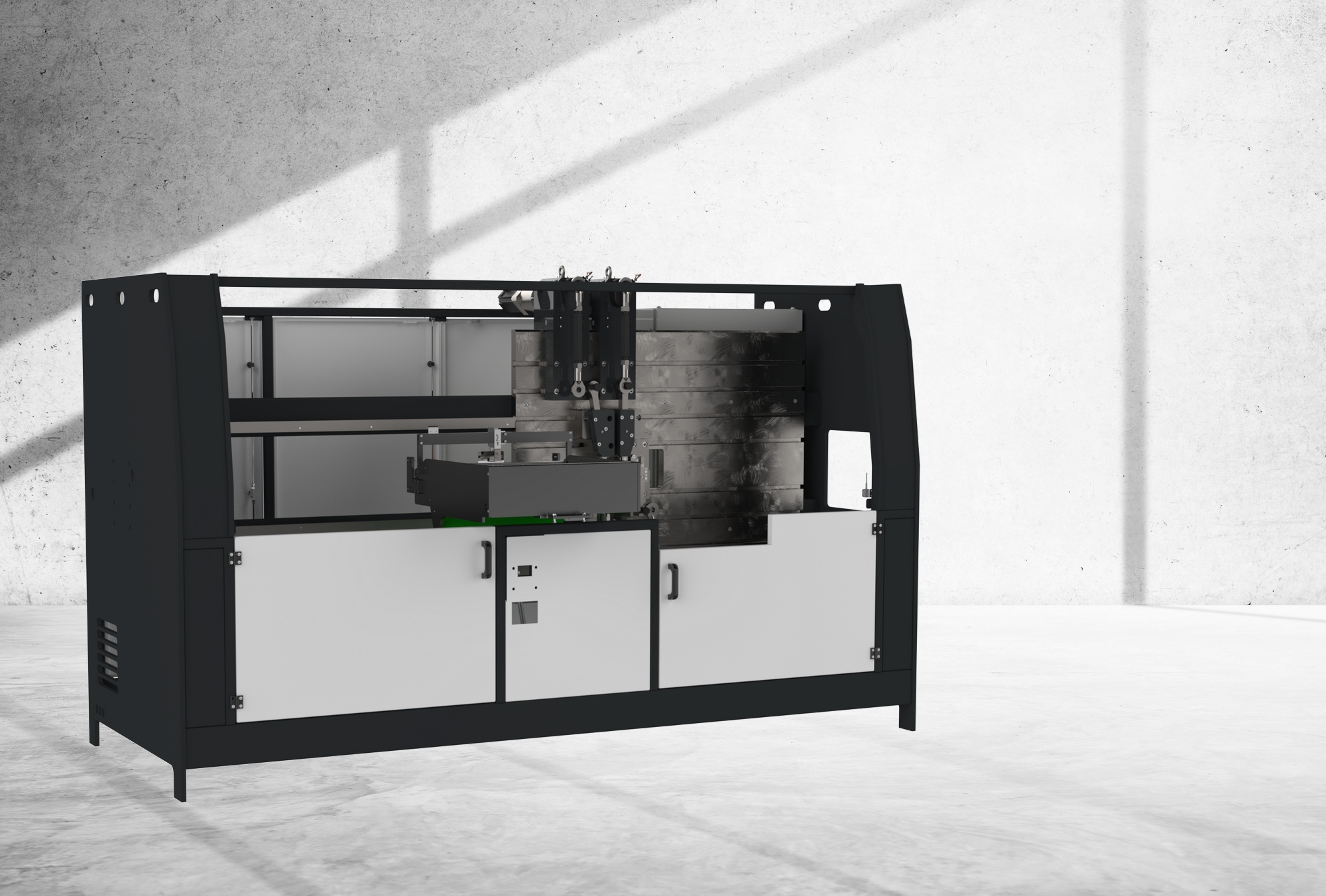

ABM 230 - Frame bending machine
- Big machine frame
- Bending process is made in very fast sequence via three servo motors
- High production output
- Short changeover time
Stations:
- wing forming (double)
- chamfering unit
- threading unit

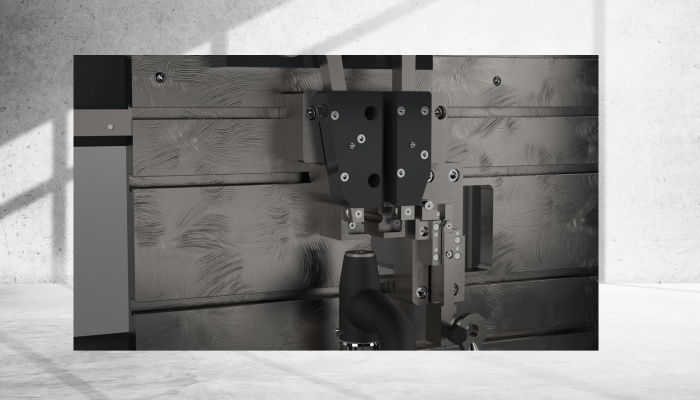

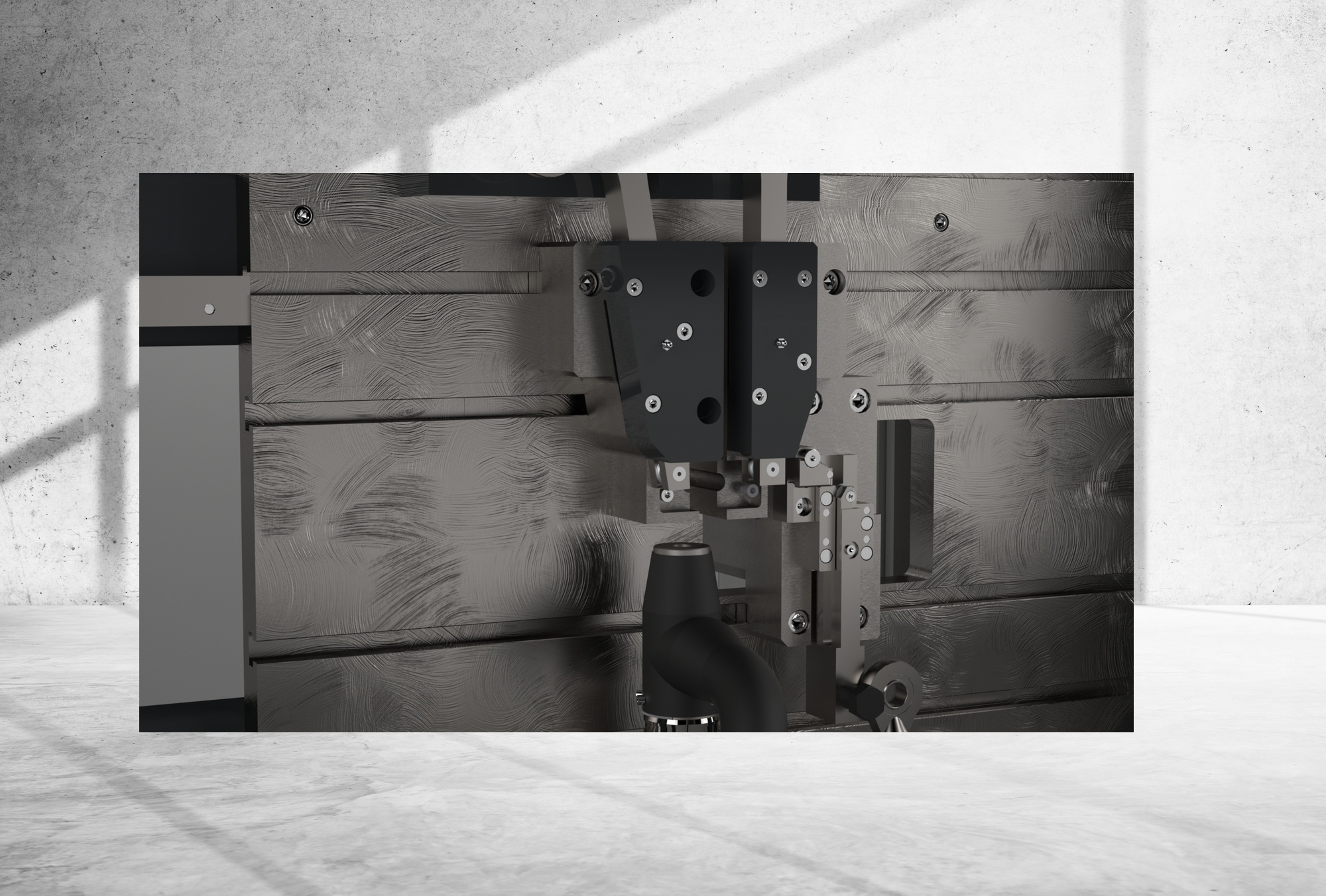

- bending unit
Technical data
| Capacity | approx. 35-40 pieces/min. |
| Wire strength | max. 650 N/mm |
| Wire diameter | 5 - 8 mm (0.20 - 0.32"), galvanised steel wire, other diameter on enquiry |
| Air pressure | air consumption | min. 6 bar | 10 m3/h |
| Power supply | power input | 400 V /50 Hz | 8 kW |
