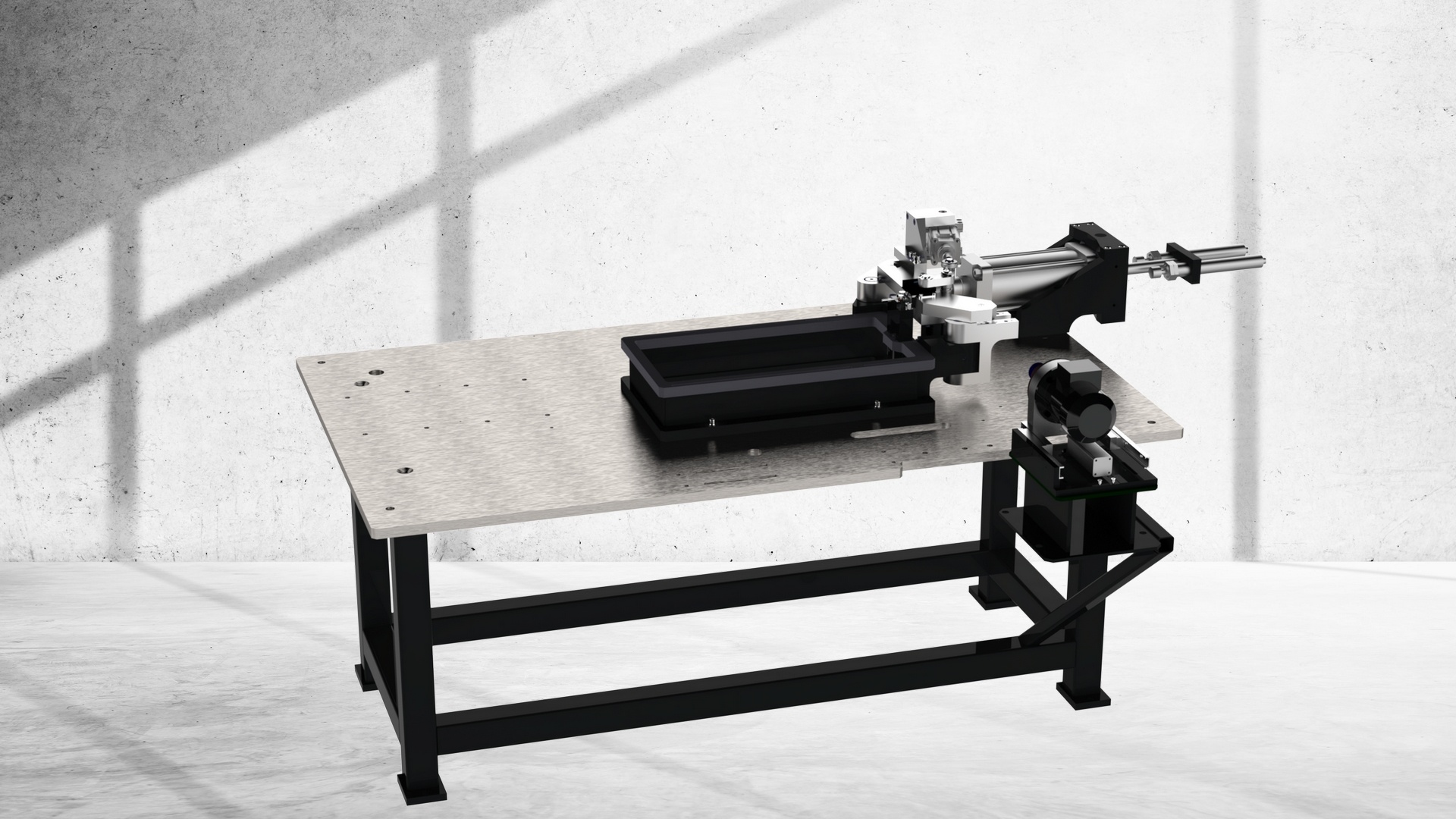

ABM 200 - Frame bending machine
- Universal production of all paint roller wire frames
- Big machine frame

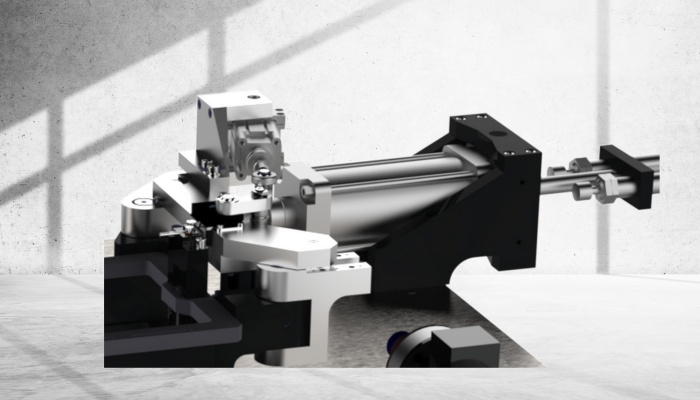

- Bending process is made by pneumatic cylinders
- Short changeover time machinery
Stations:
- wing forming (double)
- chamfering unit
- threading unit
- bending unit
Technical data
| Capacity | approx. 10 pieces/min. |
| Wire strength | max. 650 N/mm |
| Wire diameter | 5 - 8 mm (0.20 - 0.32"), galvanised steel wire, other diameter on enquiry |
| Air pressure | air consumption | min. 6 bar | 34 m3/h |
| Power supply | power input | 400 V /50 Hz | 3 kW |
