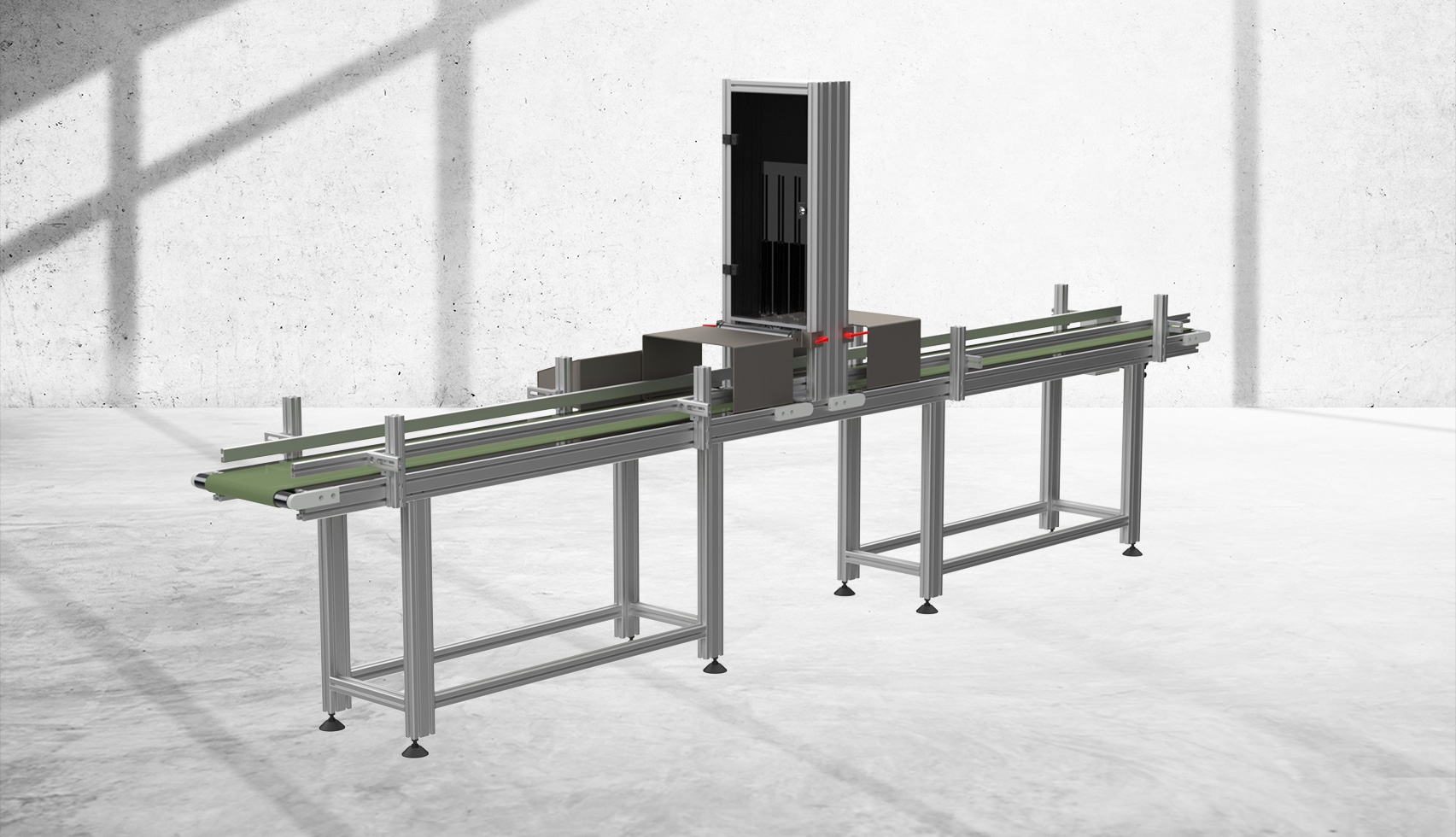

FEA - Ejecting Machine

Characteristics

  • The foam block is put onto the conveyor belt
  • the position of the drill holes is controlled by a laser sensor
  • the finished paint rollers are ejected from the foam block and collected in a case underneath the machine or led on to the round off machine Type MAR by a transportation belt
  • at the end of the machine the empty block is removed for disposal



Features

  • maximum economy
  • high flexibility
  • simple operation
  • high capacity
  • production security
  • very low change-over time

Technical data

Capacity 7fold: up to 10.000 rollers/hour*
14fold: up to 30.000 rollers/hour*
Material dimensions height max. 185 mm
width 7fold 300 mm width 14fold 500 mm
length 2500 mm
Material feed pulse motor
Power supply 400 V / 50 Hz
Control pulse motor control with PLC and touch screen
Air supply 6 bar

* depending on the material to be used and the block width
