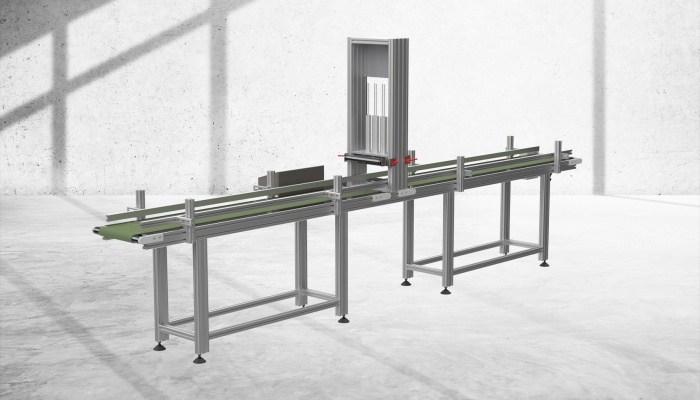

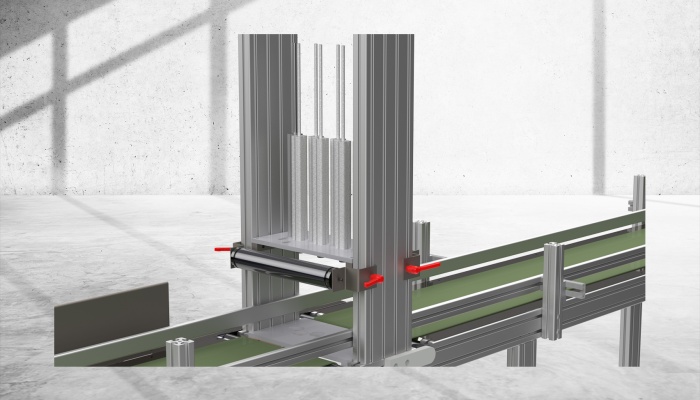

FEA - Ejecting Machine
Characteristics
- The foam block is put onto the conveyor belt
- the position of the drill holes is controlled by a laser sensor
- the finished paint rollers are ejected from the foam block and collected in a case underneath the machine or led on to the round off machine Type MAR by a transportation belt
- at the end of the machine the empty block is removed for disposal
Features
- maximum economy
- high flexibility
- simple operation
- high capacity
- production security
- very low change-over time
Technical data
| Capacity |
7fold: up to 10.000 rollers/hour* 14fold: up to 30.000 rollers/hour* |
| Material dimensions |
height max. 185 mm width 7fold 300 mm width 14fold 500 mm length 2500 mm |
| Material feed | pulse motor |
| Power supply | 400 V / 50 Hz |
| Control | pulse motor control with PLC and touch screen |
| Air supply | 6 bar |
* depending on the material to be used and the block width
