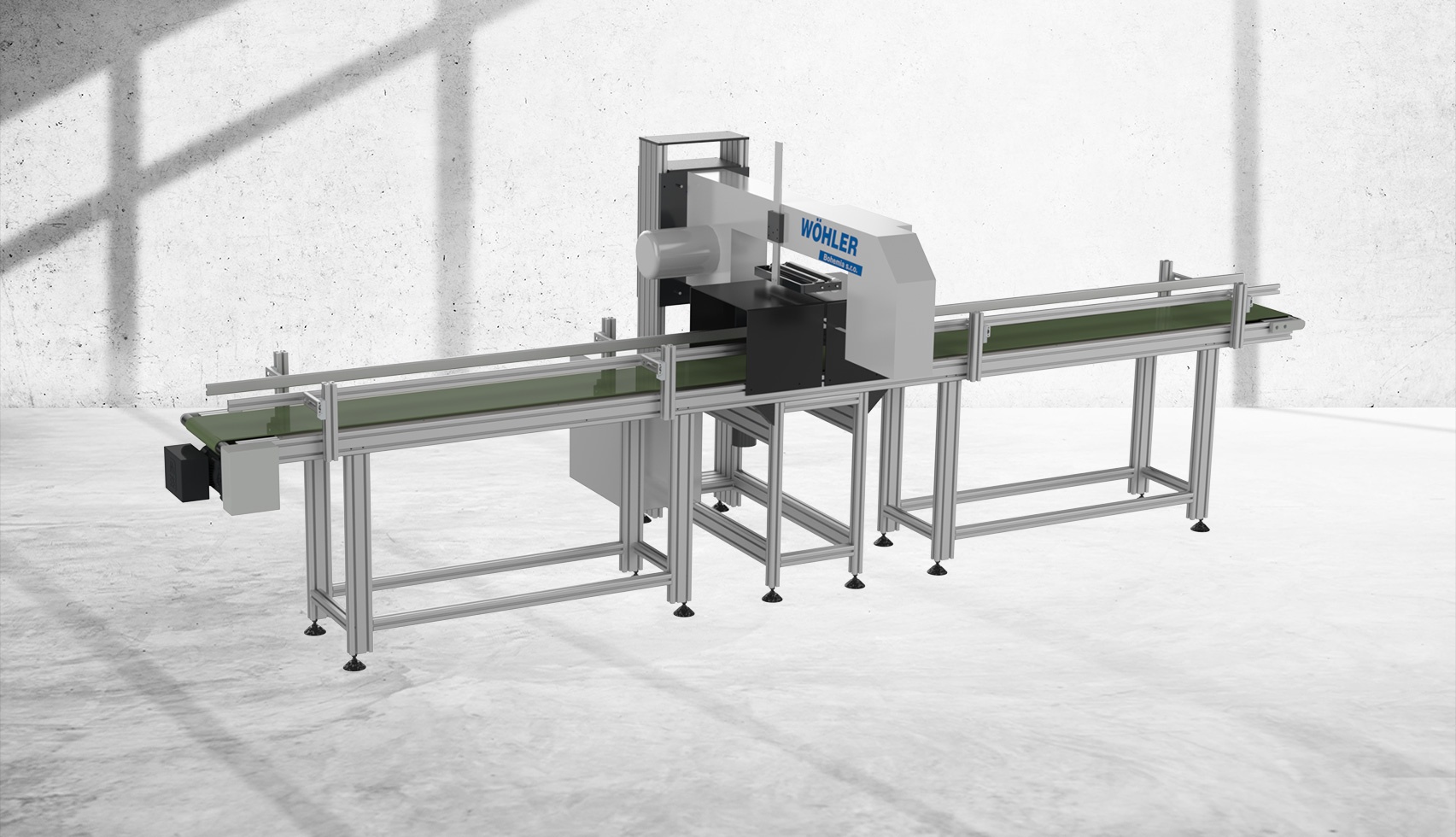

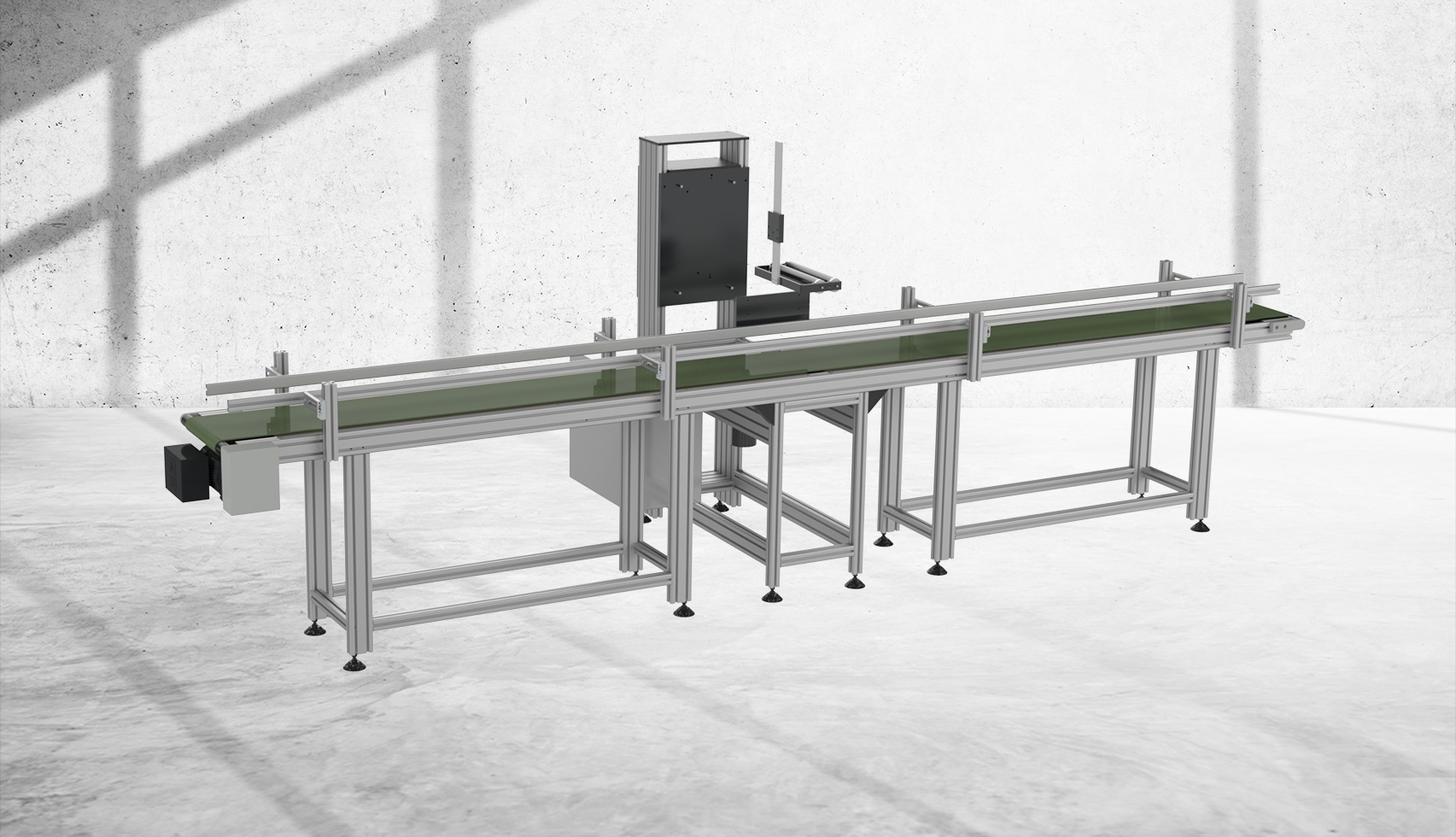

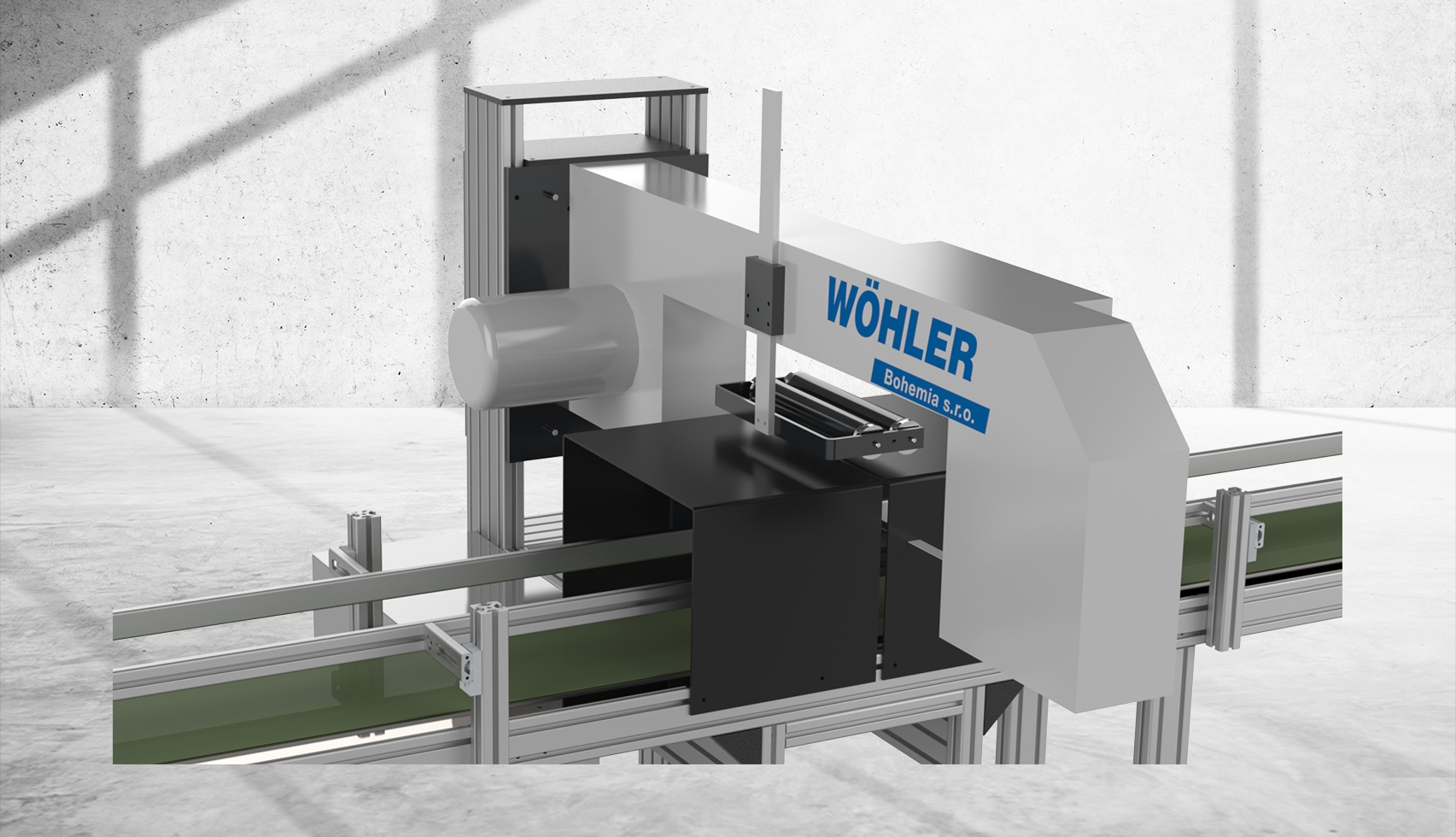

FSA - Splitting Machine

Characteristics

  • The foam block is put onto the conveyor belt bottom up.
  • The bottom is split-off with the band saw.
  • At the end of the machine the block are removed for further processing.
  • The foam block can also be transferred to an ejecting machine connected thereafter.



Features

  • maximum economy
  • high flexibility
  • simple operation
  • high capacity
  • production security
  • very low change-over time
  • integrated blade sharpening device

Technical data

Capacity 5 to 40 m/min*
Material dimensions height max. 185 mm
width 300 mm resp. 500 mm
length 2500 mm
Material feed adjustable rotary current gear motor
Power supply 400 V / 50 Hz

* depending on the material to be used
