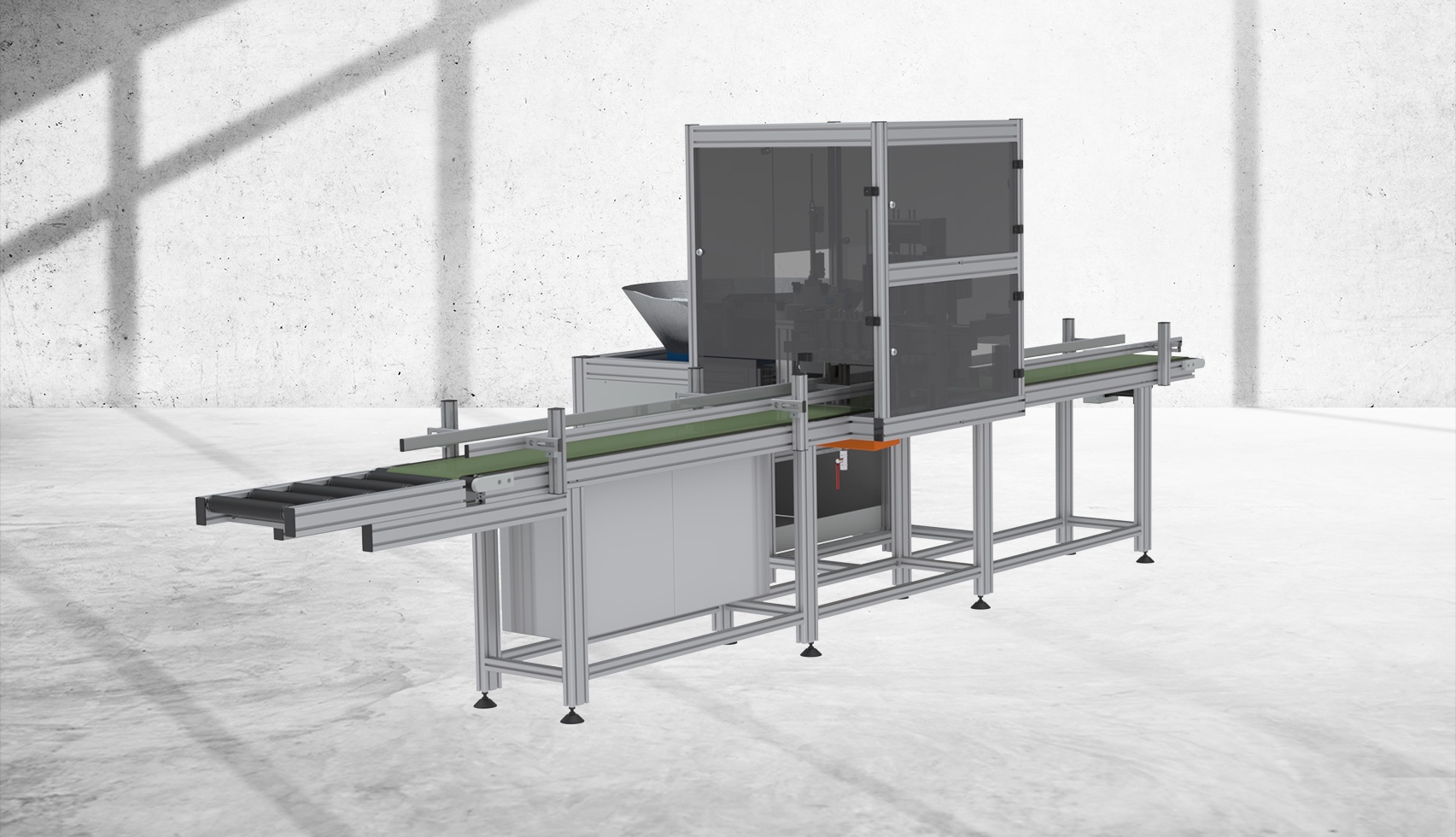

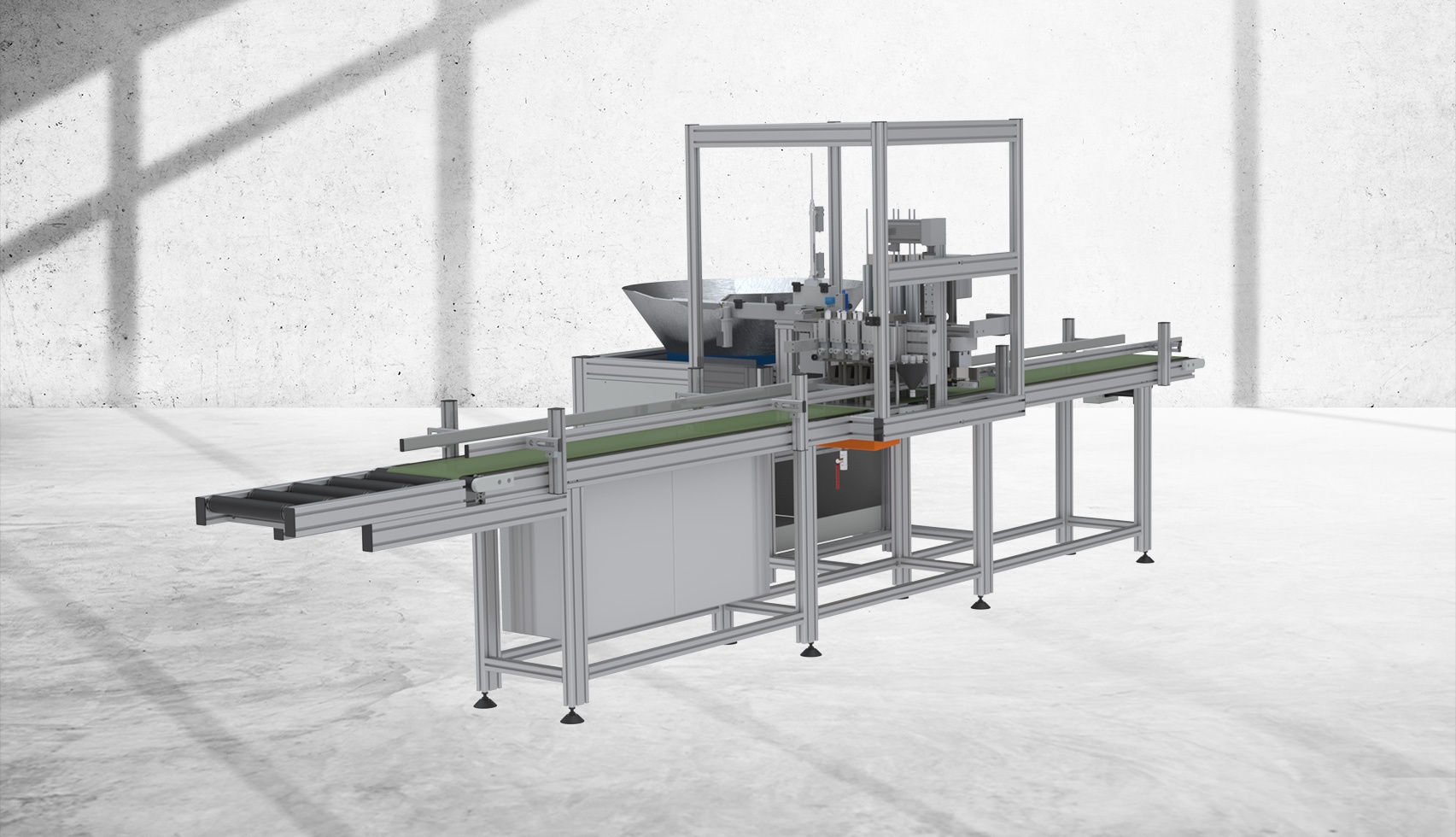

FGA - Gluing Machine


  • The drilled foam block is put onto the conveyor belt and pulled in by the machine.
  • Depending on the execution the tubes are fed into the Corona Course* from a sorting drum, and after the treatment passed on into the gluing machine.

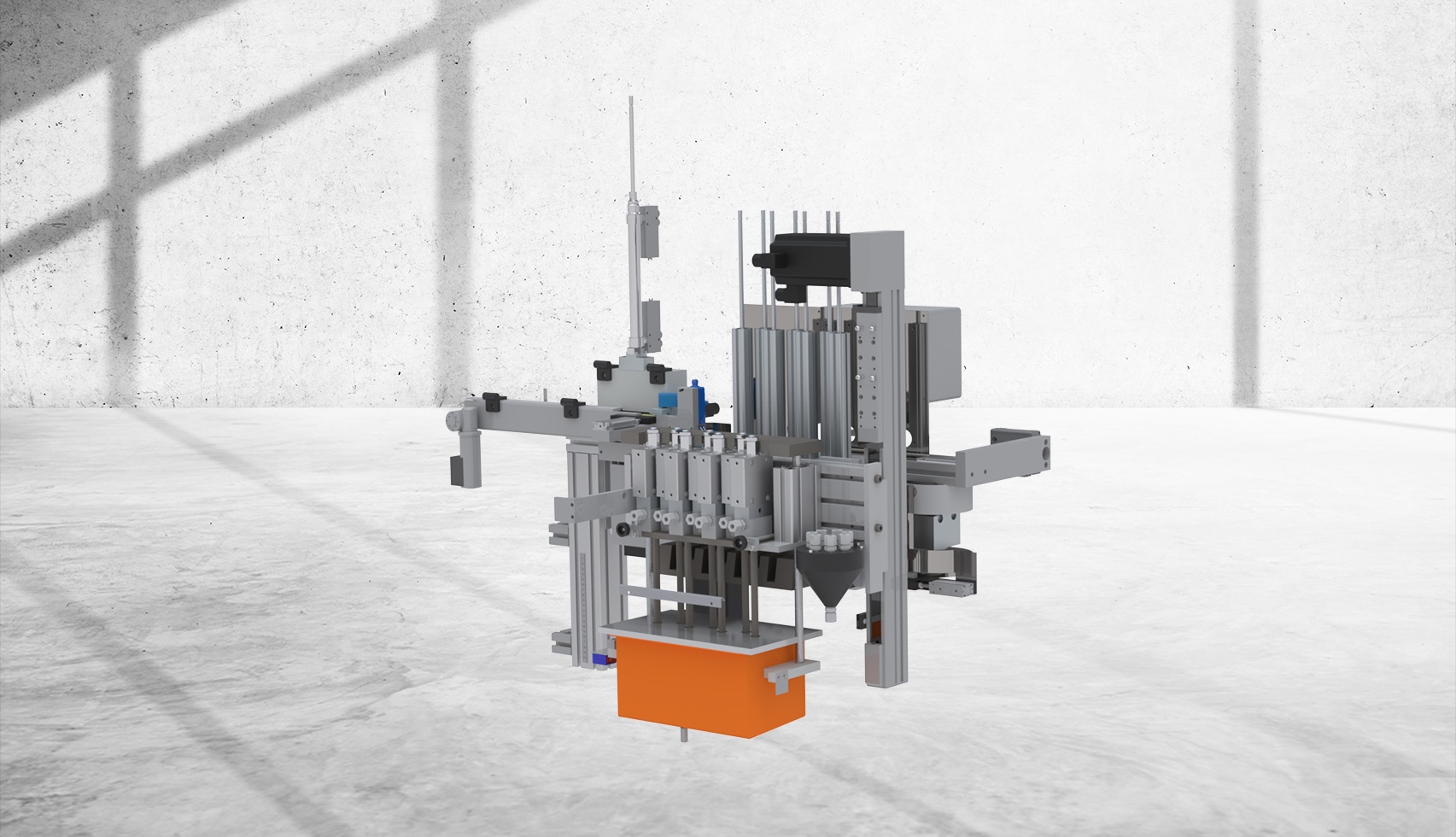

  • There the glue is regularly distributed in the drill holes by several individual nozzles.
  • The roller inserts are automatically sorted, inserted and pasted up with the inside of the drill hole.
  • At the end of the machine the block is removed to dry out and for further processing.
  • The machine is equipped with an automatic height adjustment, which means that the glue spreading is automatically adjusted to the various heights of the blocks.
  • During the Corona Treatment the surface tension is increased, this means that the more economic PP or PVC tubes can be used.



  • maximum economy
  • high flexibility
  • simple operation
  • high capacity
  • production security
  • very low change-over time
  • no spray vapour during distribution of adhesive
  • according to execution use of PP and PVC tubes

Technical data

Capacity up to 3000 resp. 6000 rollers per hour*
Material dimensions height max. 185 mm
width 300 mm resp. 500 mm
length 2500 mm
Material feed pulse motor
Adhesive quantity with special nozzle
Transport of adhesive autoclave
Power supply 400 V / 50 Hz
Control pulse motor control with PLC and touch screen
Air supply 6 bar

* depending on the material and the block width
