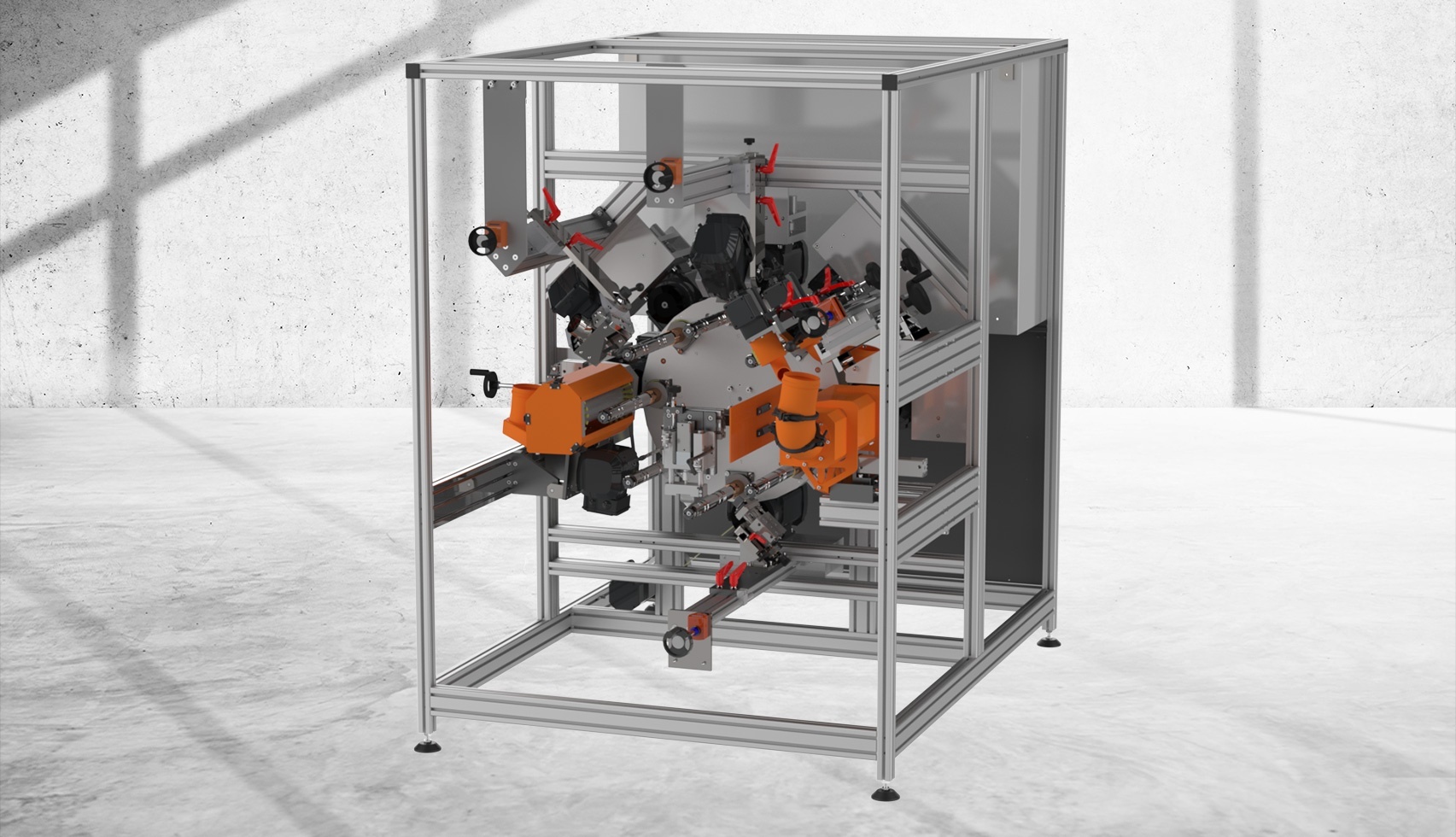

RBA - Roller Brushing (finishing) Automat
Characteristics
For cutting to length, brushing, chamfering and shearing plush rollers.
Rod magazine with separator
Turntable with the following processing stations:
- carousel
- with cutting device
- ejector for remnants
- brushing station 1
- reserve station
- brushing station 2
- chamfering (with 2 angle-adjustable chamfering rollers for the roller ends)
- ejector 1
- reserve station
The machine can be quickly converted to different lengths and diameters by exchanging the tools.
- Advantages
- Maximum efficiency
- High flexibility
- Easy operation
- High performance
- Production reliability
- Very short set-up times
Option: Shears
Technical data
| Capacity | up to 1000 pcs/hour* |
| Tube length | 3400 mm (11.15 ft)** |
| Finish roller length | 25 - 310 mm (0.98"-12.2") |
| Roller diam. |
innen: 38 - 55 mm (1.5"-2.2") max. außen: 106 mm (4.17") |
| Power supply | 400 V / 50 Hz |
| Air supply | 6 bar |
* depending on the length, diameter and kind of plush
** different tube lengths upon demand
