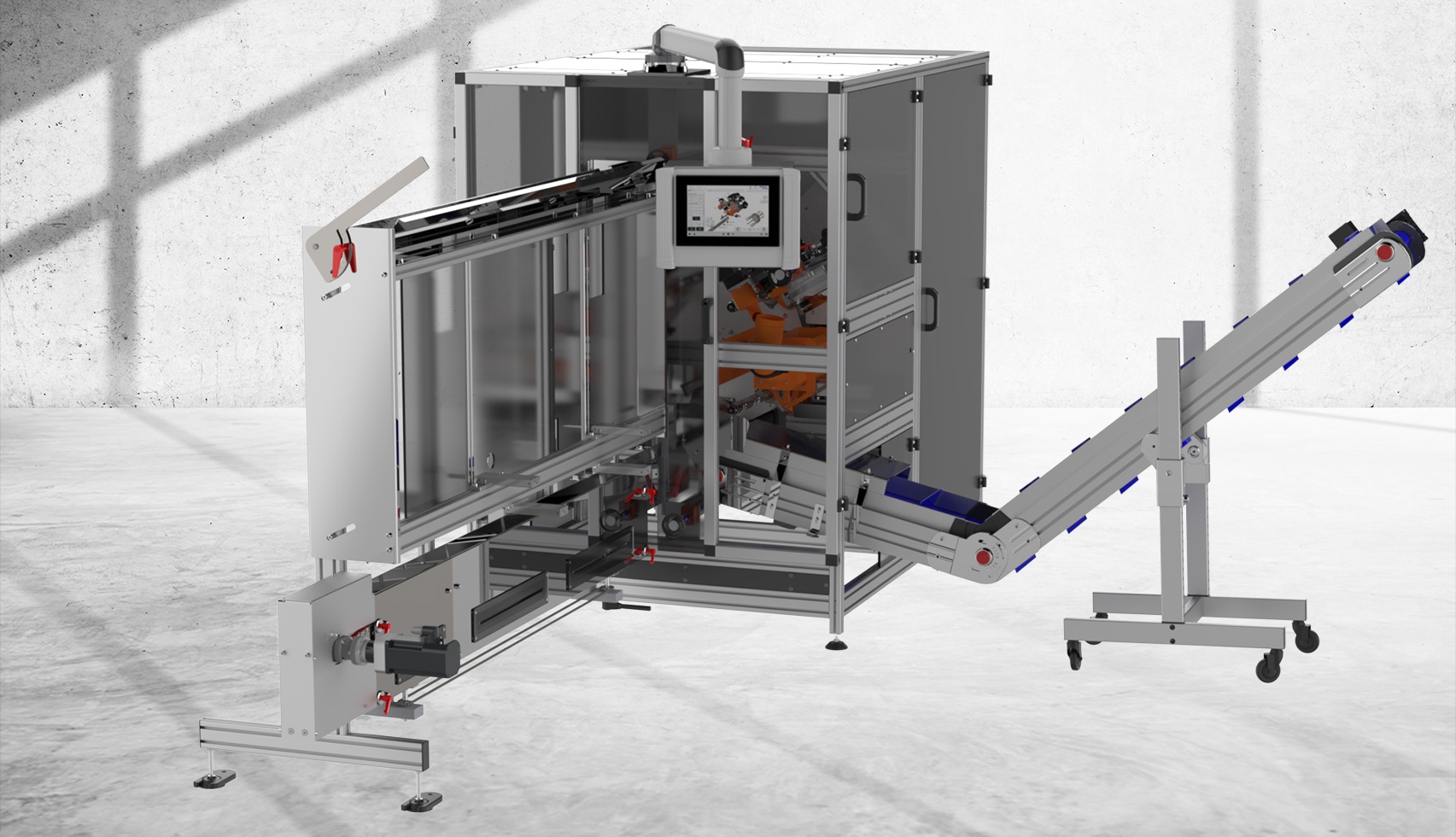

RBA - Paint roller finishing automat
Characteristics
For cutting to size, brushing, shearing and bevelling of plush rollers.
- Tube unit magazine with separation.
-

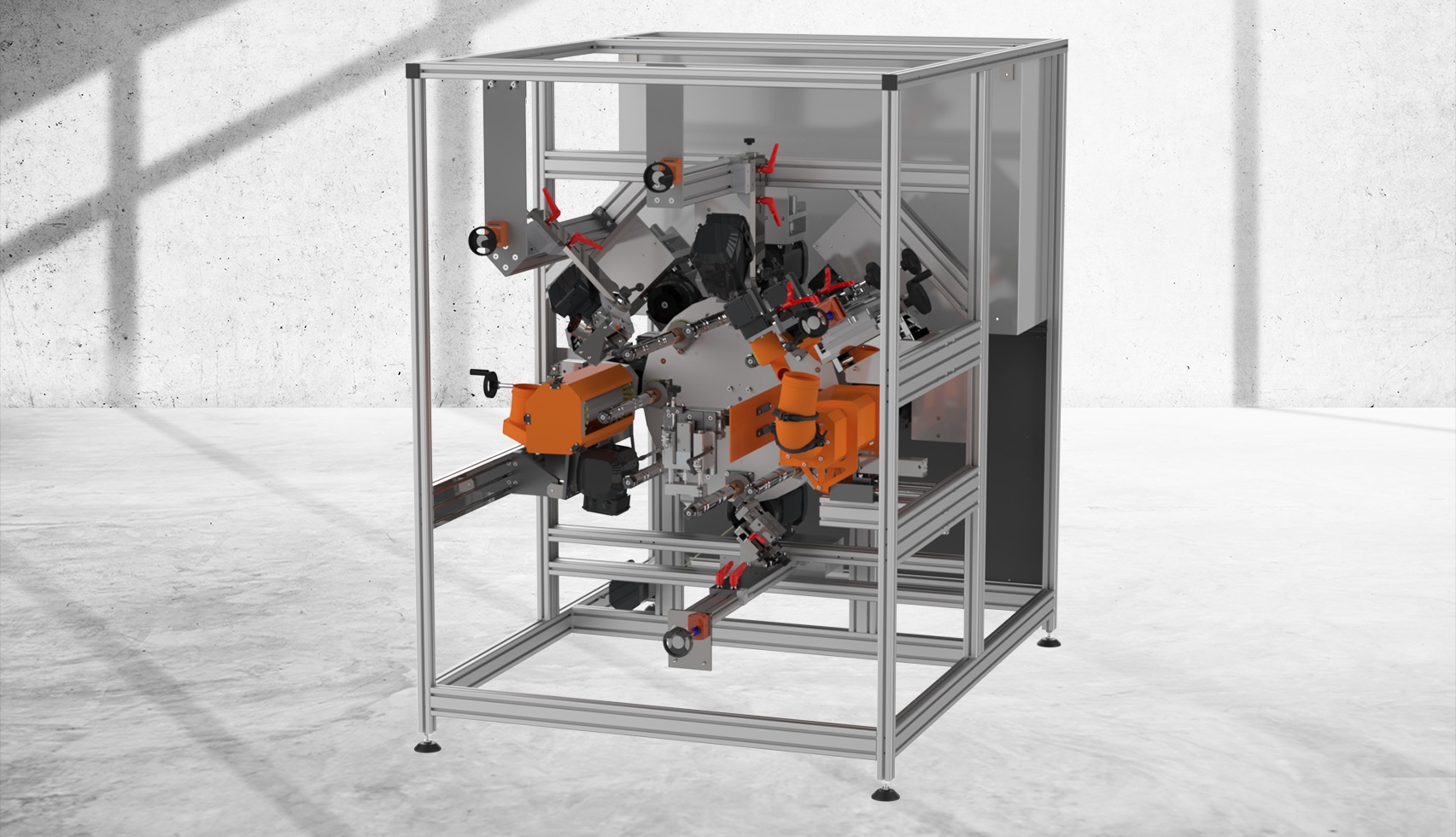

Rotary plate with the following units:
- tube feed with cutting device
- ejection of remainders
- brush unit 1
- unit in reserve
- brush unit 2
- bevelling (with adjustable bevel angles for the roller ends)
- ejection 1
- unit in reserve
With exchanging tools the machine can quickly be changed to various lengths and diameters.
Features
- maximum economy
- high flexibility
- simple operation
- high capacity
- production security
- very low change-over time
- option: shearing
Technical data
| Capacity | up to 1000 rollers/hour* |
| Tube length | 3400 mm (11,15 ft)** |
| Finish roller length | 25 - 310 mm (0.98"-12.20") |
| Roller diam. |
interior 38 - 55 mm (1.50"-2.17") exterior max. 106 mm (4.17") |
| Power supply | 400 V / 50 Hz |
| Air supply | 6 bar working pressure |
* depending on the length, diameter and kind of plush
** different tube lengths upon demand
