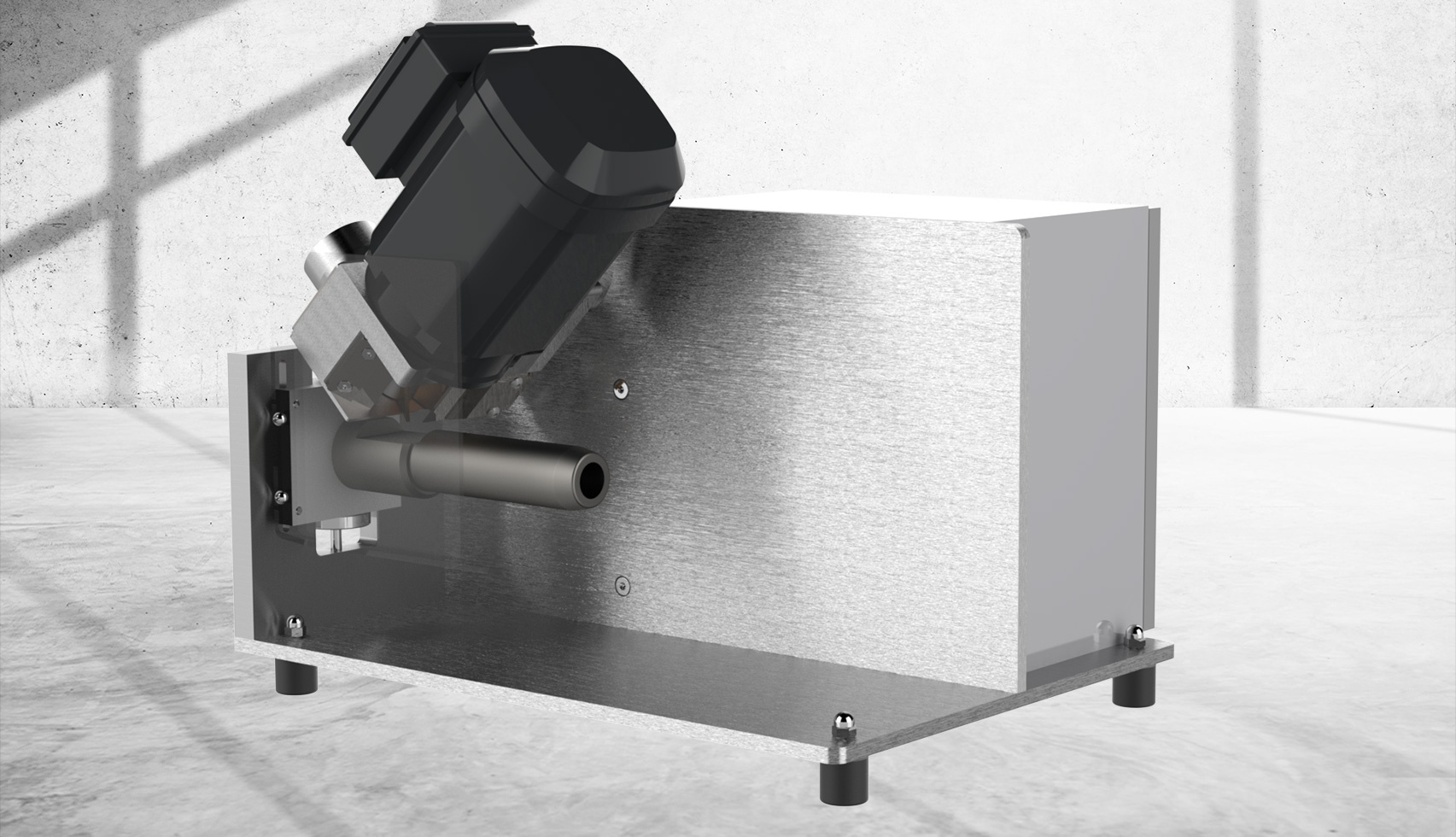

BD 10 / 20 - Bevelling device
Characteristics
Powerful and reliable.
- base frame to be placed on a working table
- bevelling aggregate, angle adjustable with integrated hollow shaft drive
- mandril, height adjustable and adjustability of the mandrils in length
- box with electrical speed control
Features
- maximum economy
- high flexibility
- simple operation
- high capacity
- production security
- very low cleaning time
Technical data
| Capacity | approx. 400 - 800 rollers/h depending on the material properties and the ability of the operator |
| Interior roller diameter | 28 - 55 mm |
| Power supply | 230 V / 50 Hz |
| Speed | 500 - 2000 rpm |
| Measurements |
width 450 mm depth 360 mm height 400 mm |
| Weight | approx. 40 kg |
* depending on the length and diameter of the tube and the kind of plush
