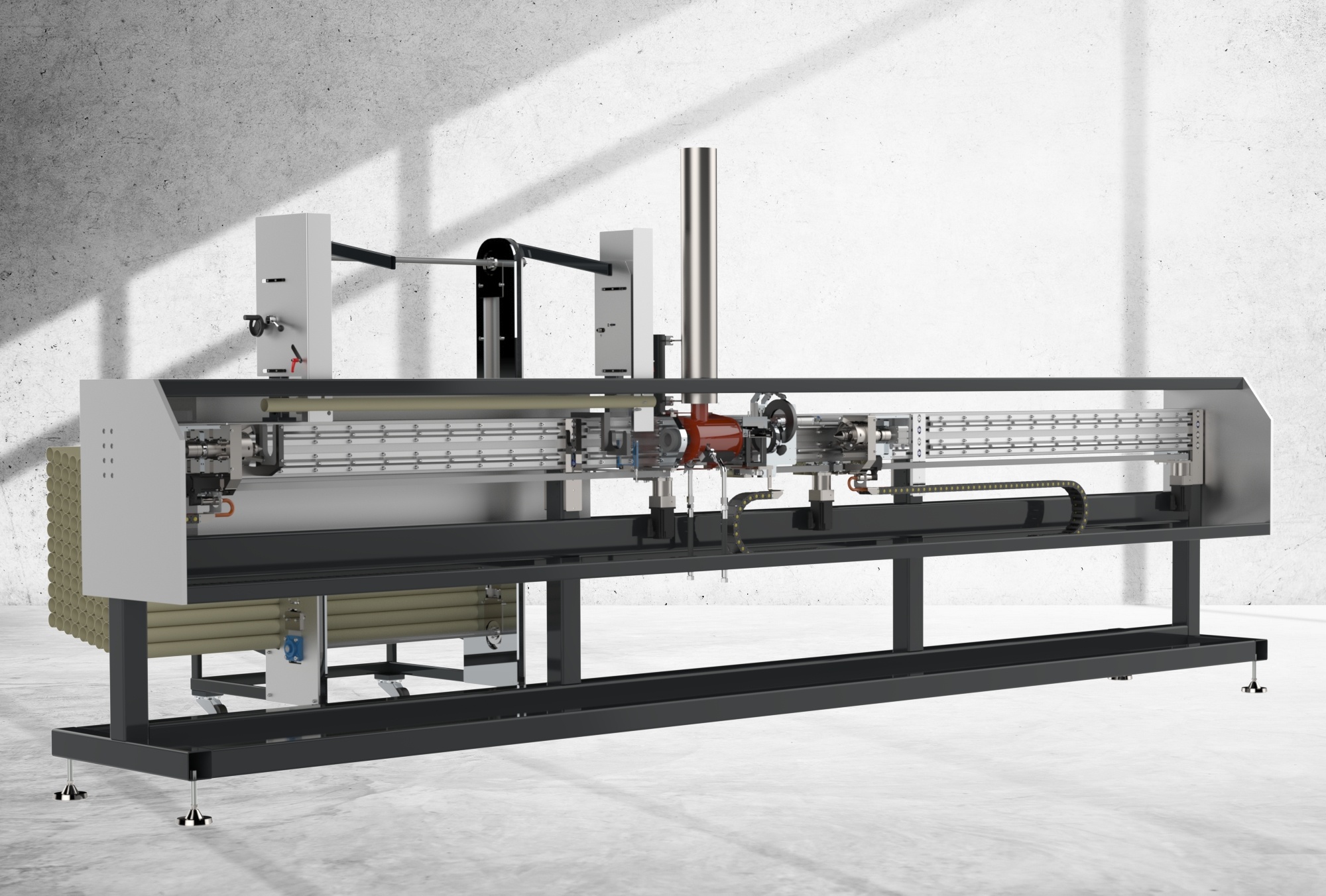

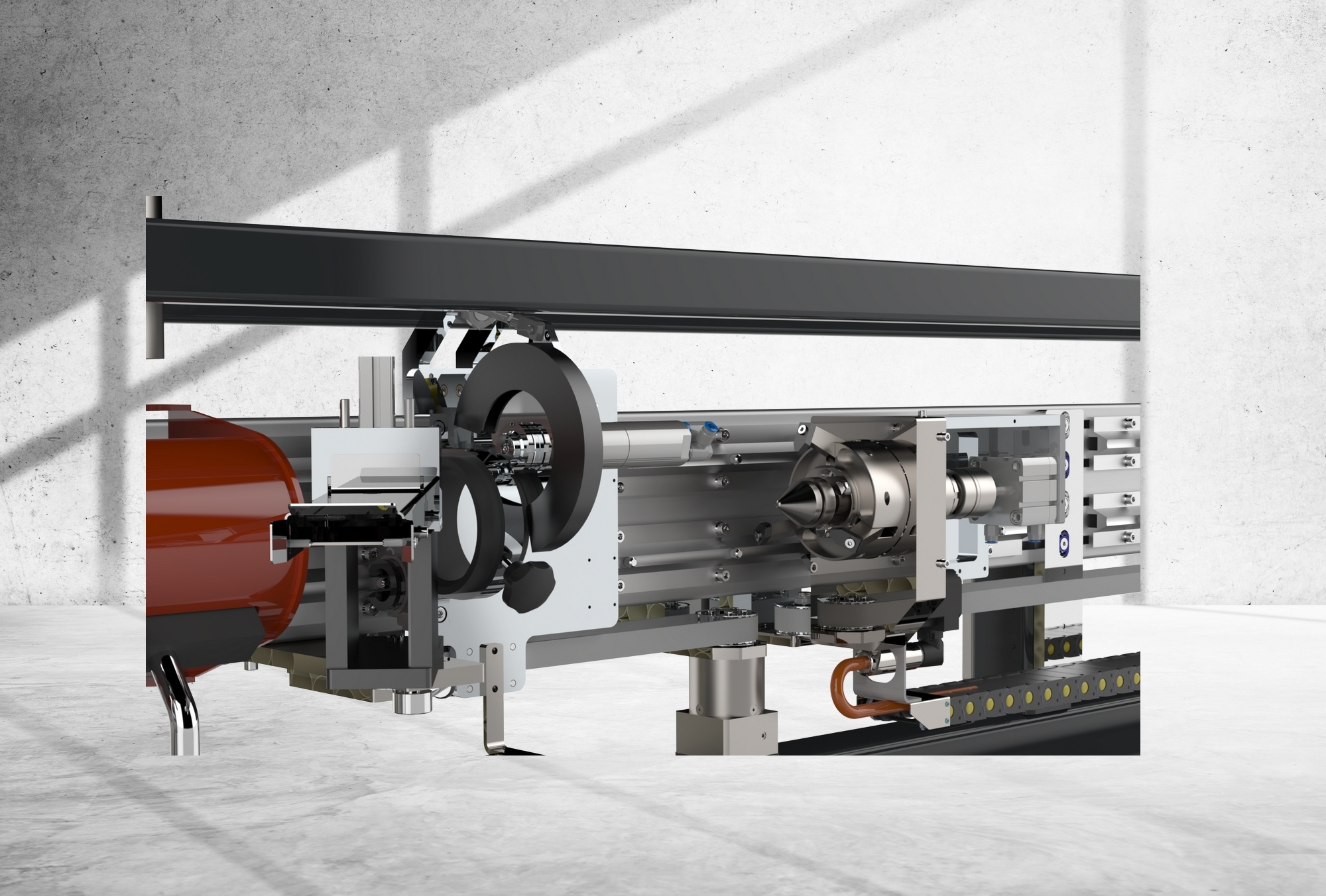

TWM 200 - Stick roller winding machine

Characteristics

Various lengths and diameters - high flexibility

  • Via the feeding unit with tube magazine the tubes are transported to the rotating plate with 2 roller mandrels.
  • The surface of the plastic tubes is heated up by means of a gas burner.
  • The plush is fed automatically, the tube is wound and the plush is cut at the programmed length.
  • The joining of the plush with the tube is done by first melting the surface and then cooling it off.
  • This way the back of the plush combines with the tube mechanically.
  • The wound sticks are pushed into a magazine or are fed into a connected assembly machine.
  • With exchanging tools the machine can quickly be changed to various lengths and diameters.



Features

  • maximum economy
  • high flexibility
  • simple operation
  • high capacity
  • production security
  • very low change-over time

Technical data

Production speed up to 26,25 ft (8 m/min)
Stick length 64.7" - 141.7" (1650 - 3600 mm)
Stick diameter 0,51" - 2,16" (13 - 55 mm)
Gas supply working pressure 30 - 70 mbar propane or natural gas
Air pressure / air consumption (ISO 8573-1) min. 6 bar | - m³/h
Power supply | Power input 400 Volt / 50 Hz | - kW

* Guideline values – these may vary considerably depending on material specifications.
