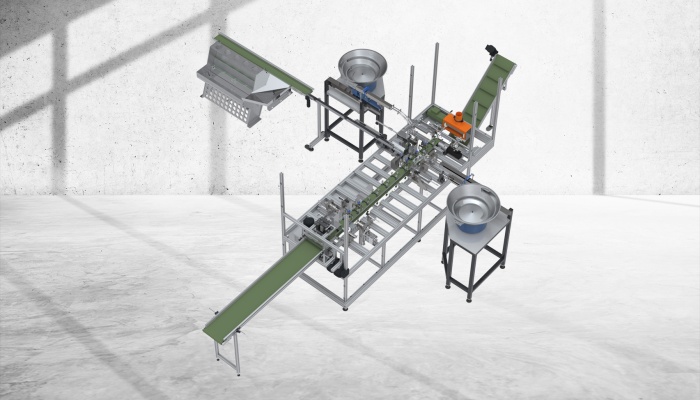

RMA 300 - Paint roller assembly automat



For the production of plush paint rollers.

  • supply belt with separation
  • expanding and putting in line
  • folding in of the plush on either side if the rollers have an exceeding end
  • supply and pressing in of right bearing cap with autom. separating and sorting
  • supply of intermediate tube with autom. separating and sorting
  • supply and pressing in of left bearing cap with autom. separating and sorting
  • reserve station
  • ejecting station

Features

  • maximum economy
  • high flexibility
  • simple operation
  • high capacity
  • production security
  • very low change-over time
  • option: brushing station

Technical data

Capacity up to 1200 roller/hour*
Length of rollers min. 50 mm
max. 250 mm
Diameter of rollers min. 38 mm
max. 55 mm
Power supply 400 V / 50 Hz
Air supply 6 bar

* related to the total quantity of parts
