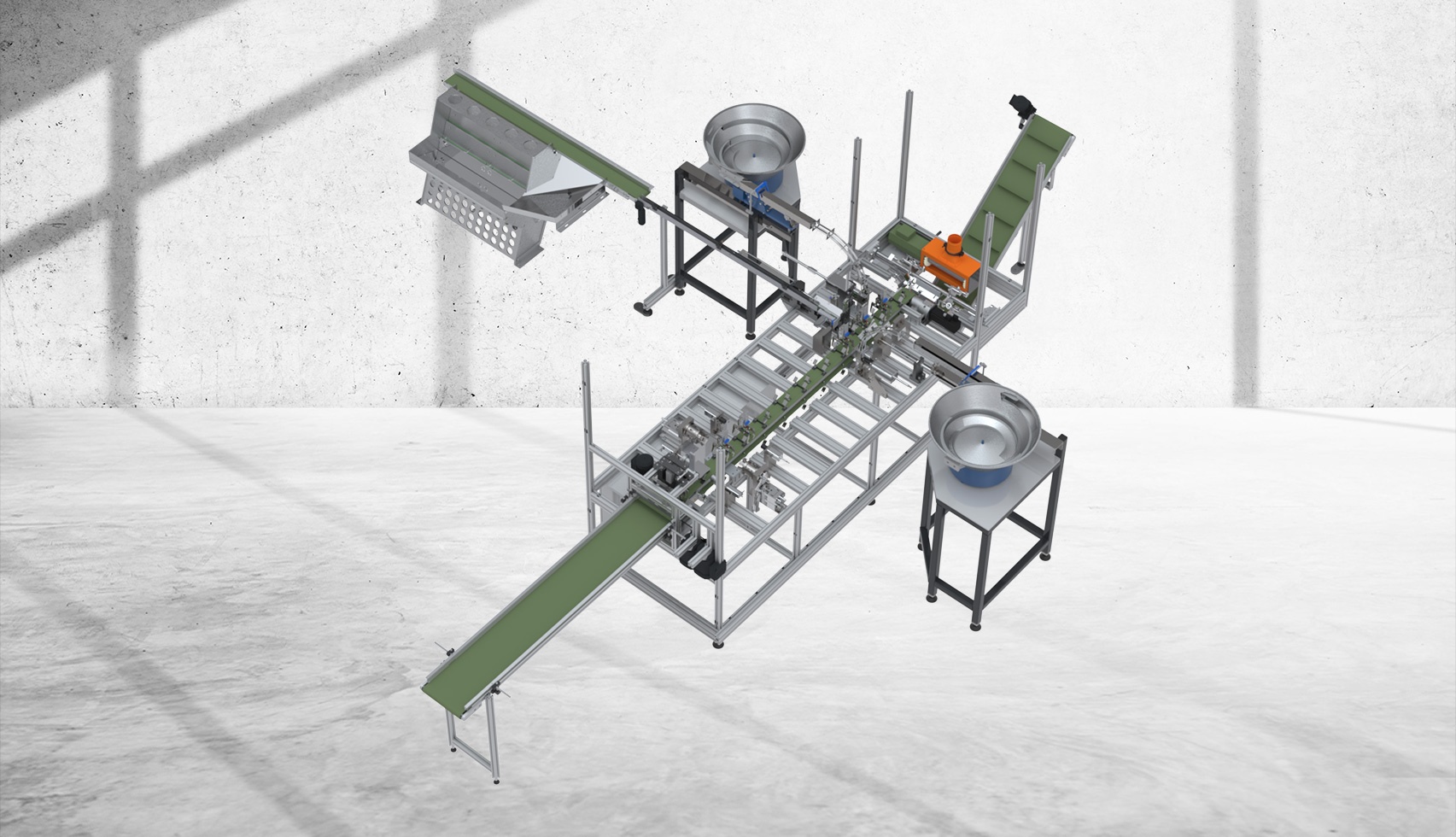

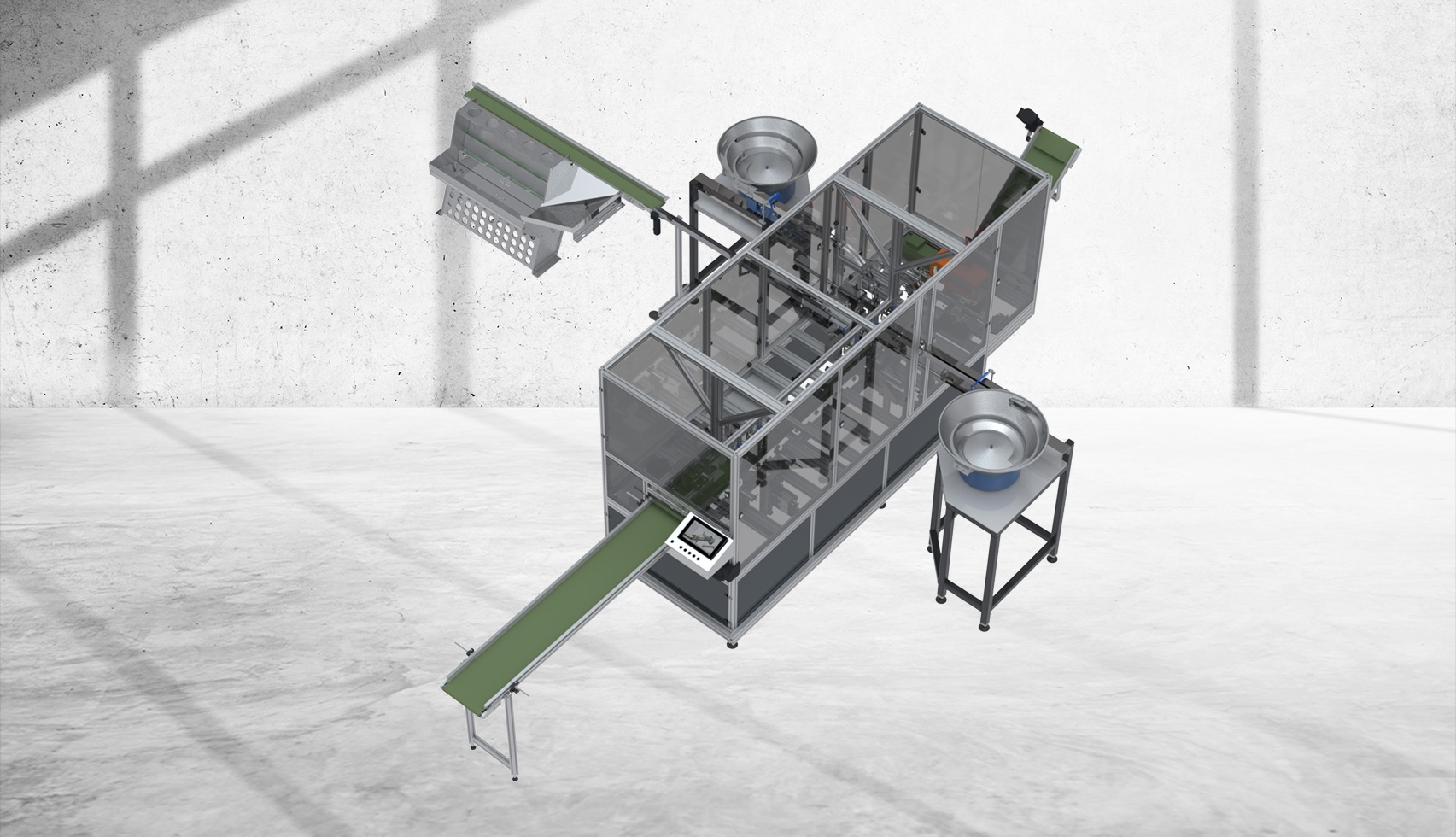

RMA 300 - Paint roller assembly automat
For the production of plush paint rollers.
- supply belt with separation
- expanding and putting in line
- folding in of the plush on either side if the rollers have an exceeding end
- supply and pressing in of right bearing cap with autom. separating and sorting
- supply of intermediate tube with autom. separating and sorting
- supply and pressing in of left bearing cap with autom. separating and sorting
- reserve station
- ejecting station
Features
- maximum economy
- high flexibility
- simple operation
- high capacity
- production security
- very low change-over time
- option: brushing station
Technical data
| Capacity | up to 1200 roller/hour* |
| Length of rollers |
min. 50 mm max. 250 mm |
| Diameter of rollers |
min. 38 mm max. 55 mm |
| Power supply | 400 V / 50 Hz |
| Air supply | 6 bar |
* related to the total quantity of parts
