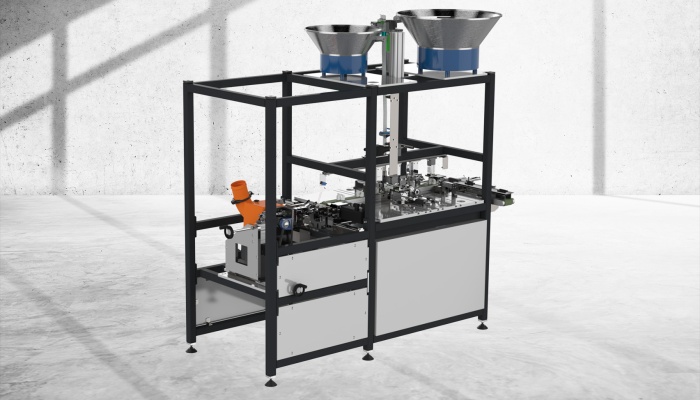

RMA 200 - Automated Radiator Roller Assembly Machine
For the production of radiator rollers of plush.
Features
- maximum economy
- high flexibility
- simple operation
- high capacity
- production security
- very low change-over time
Comprising
- roller supply with adjustable magazine or sorting and feeding device RZ or conveyor
- expansion and alignment on both sides
- conveyance and pressing-in of the clamping bushing with automatic separation and sorting
- Folding-in of the plush on both sides
- Conveyance and pressing- in of the bearing cap with automatic separation and sorting
- Conveyance and pressing-in of the plug with automatic separation and sorting
- Ejection in transport container at the end of the machine
Technical data
| Capacity | up to 2000 rollers/hour* |
| Roller length |
min. 50 mm (2.0") max. 150 mm (5.9") |
| Roller diameter |
min. 13 mm (0.5") |
| Control | pulse motor control with PLC and touch screen |
| Power supply | 400 V / 50 Hz |
| Air supply | 6 bar |
*depending on the quality of the plush
