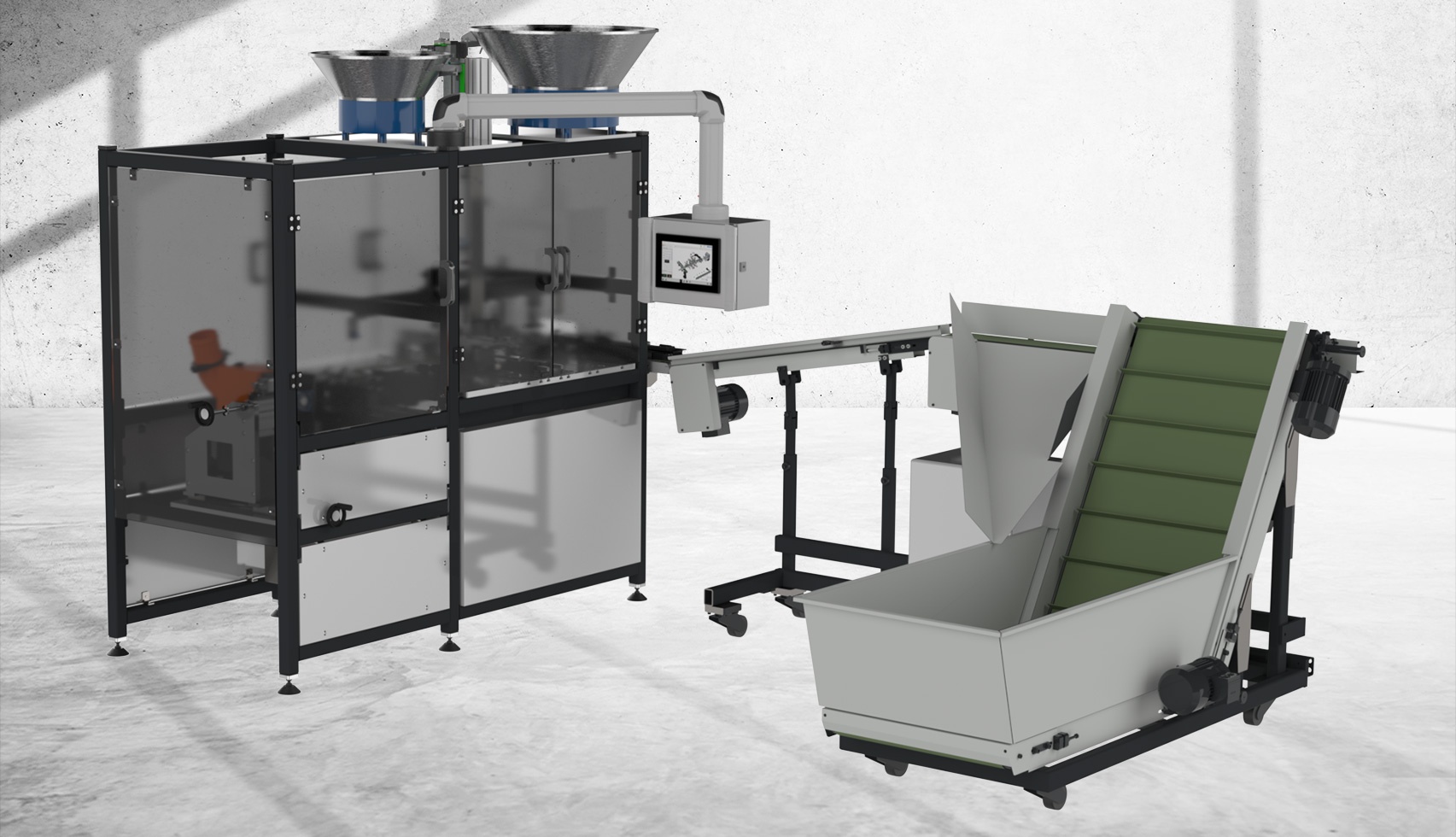

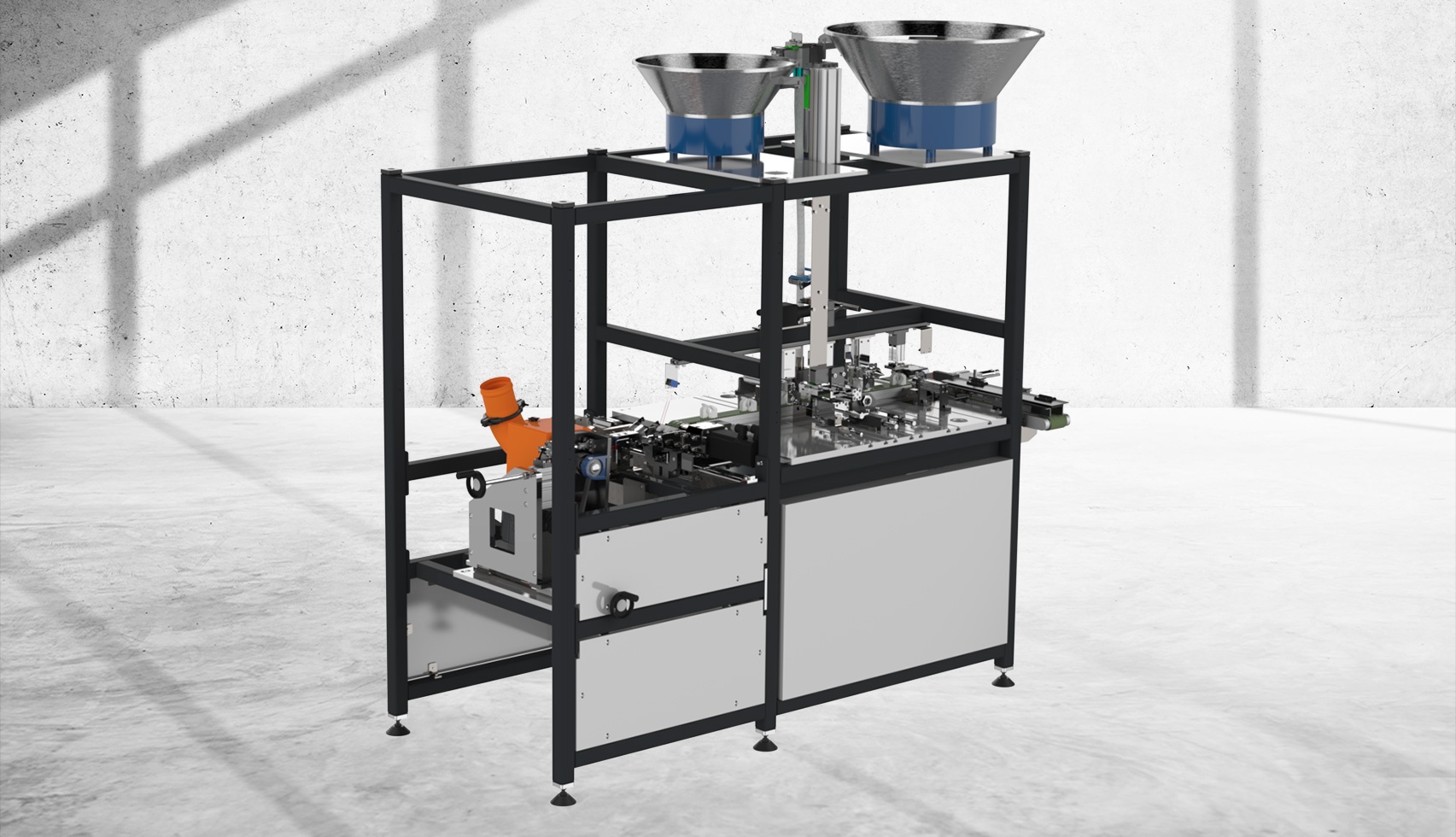

RMA 200 - Automated Radiator Roller Assembly Machine

For the production of radiator rollers of plush.


  • maximum economy
  • high flexibility
  • simple operation
  • high capacity
  • production security
  • very low change-over time



  • roller supply with adjustable magazine or sorting and feeding device RZ or conveyor
  • expansion and alignment on both sides
  • conveyance and pressing-in of the clamping bushing with automatic separation and sorting
  • Folding-in of the plush on both sides
  • Conveyance and pressing- in of the bearing cap with automatic separation and sorting
  • Conveyance and pressing-in of the plug with automatic separation and sorting
  • Ejection in transport container at the end of the machine

Technical data

Capacity up to 2000 rollers/hour*
Roller length min. 50 mm
max. 150 mm
Roller diameter min. 20 mm
max. 40 mm
Control pulse motor control with PLC and touch screen
Power supply 400 V / 50 Hz
Air supply 6 bar

*depending on the quality of the plush
