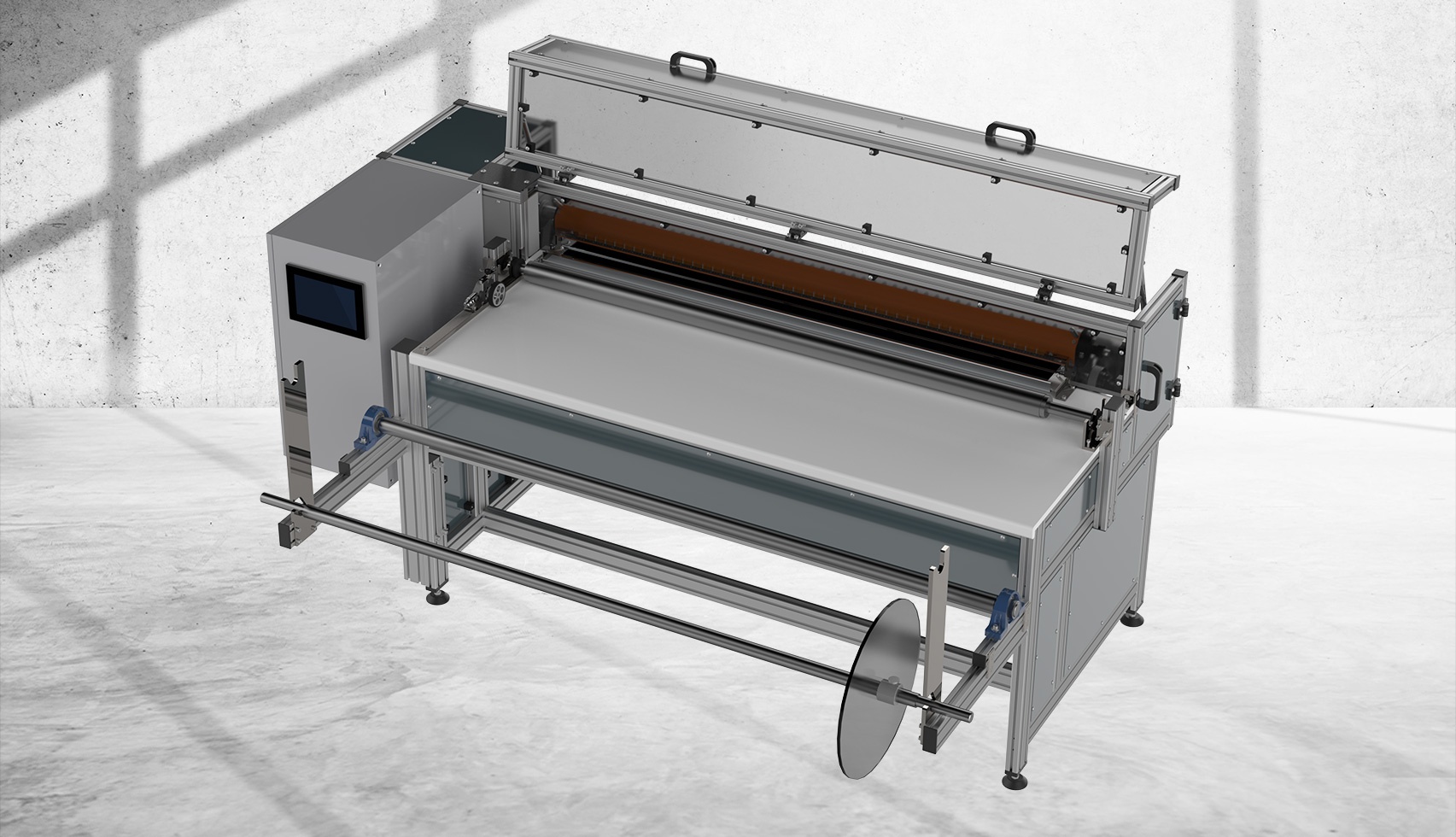

PCM - Strip Cutting Machine

For cutting all available plush and lambskin material.


  • Plush or lambskin is supplied to the cutting unit via the supporting table.
  • There is a possibility of installing a belt guide here for straightening the material.

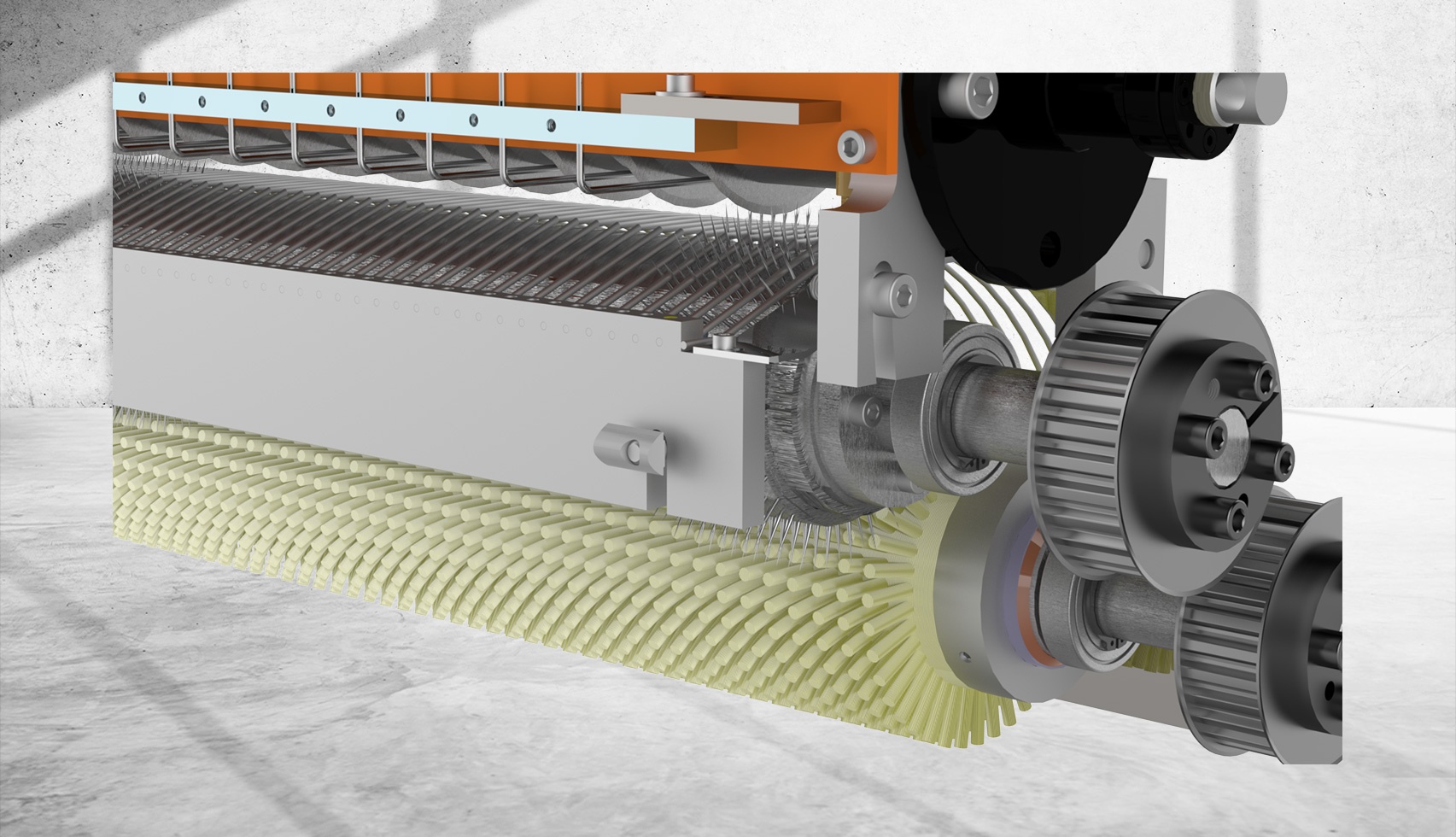

  • The material is seized by a needle drum and cut.
  • At the end the cut material is deposited on the plaiting table or is rewound to coils by means of a winding equipment.
  • The cutter bar, equipped with round blades, is rapidly exchangeable and furnished with a corresponding drive.
  • Cutter bars are available for fixed and variable strip widths.
  • If there are several cutter bars a revolving device for faster change-over of the blades is recommended.



  • maximum economy
  • high flexibility
  • simple operation
  • high capacity
  • production security
  • very low cleaning time

Technical data

Cutting capacity 3 - 15 m/min
Width of cutting max. 1600 mm
Depth of cutting
(= depth of penetration of the blades into the feed unit)
16 mm
Bale diameter max. 800 mm
Width of bales max. 1700 mm
Power supply 400 V / 50Hz
Total connected load
(without winder)
ca. 3,5 KW

*depending on the quality of the plush
