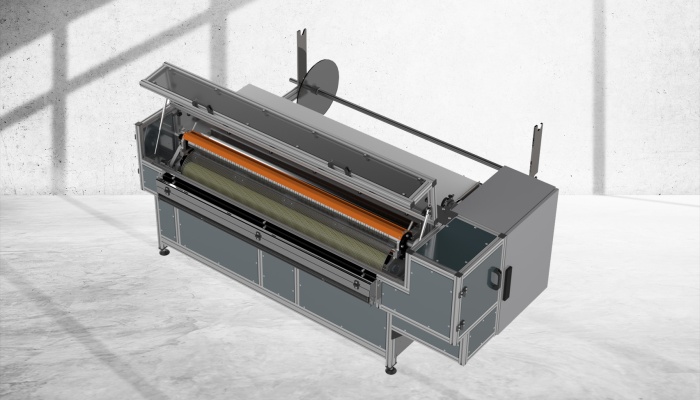

PCM - Plush strip Cutting Machine
For cutting all available plush and lambskin material.
Comprising
- Plush or lambskin is supplied to the cutting unit via the supporting table.
- There is a possibility of installing a belt guide here for straightening the material.

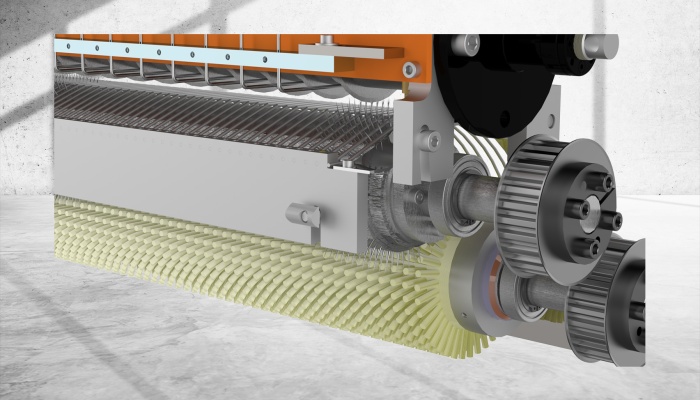

- The material is seized by a needle drum and cut.
- At the end the cut material is deposited on the plaiting table or is rewound to coils by means of a winding equipment.
- The cutter bar, equipped with round blades, is rapidly exchangeable and furnished with a corresponding drive.
- Cutter bars are available for fixed and variable strip widths.
- If there are several cutter bars a revolving device for faster change-over of the blades is recommended.
Features
- maximum economy
- high flexibility
- simple operation
- high capacity
- production security
- very low cleaning time
Technical data
| Cutting capacity | 3 - 15 m/min (9.8 - 49.2 ft/min) |
| Width of cutting | max. 1600 mm (max. 63") |
|
Depth of cutting (= depth of penetration of the blades into the feed unit) |
16 mm (0.63") |
| Bale diameter | max. 800 mm (max. 31.5") |
| Width of bales | max. 1700 mm (max. 67") |
| Power supply | 400 V / 50Hz |
|
Total connected load (without winder) |
ca. 3,5 KW |
*depending on the quality of the plush
