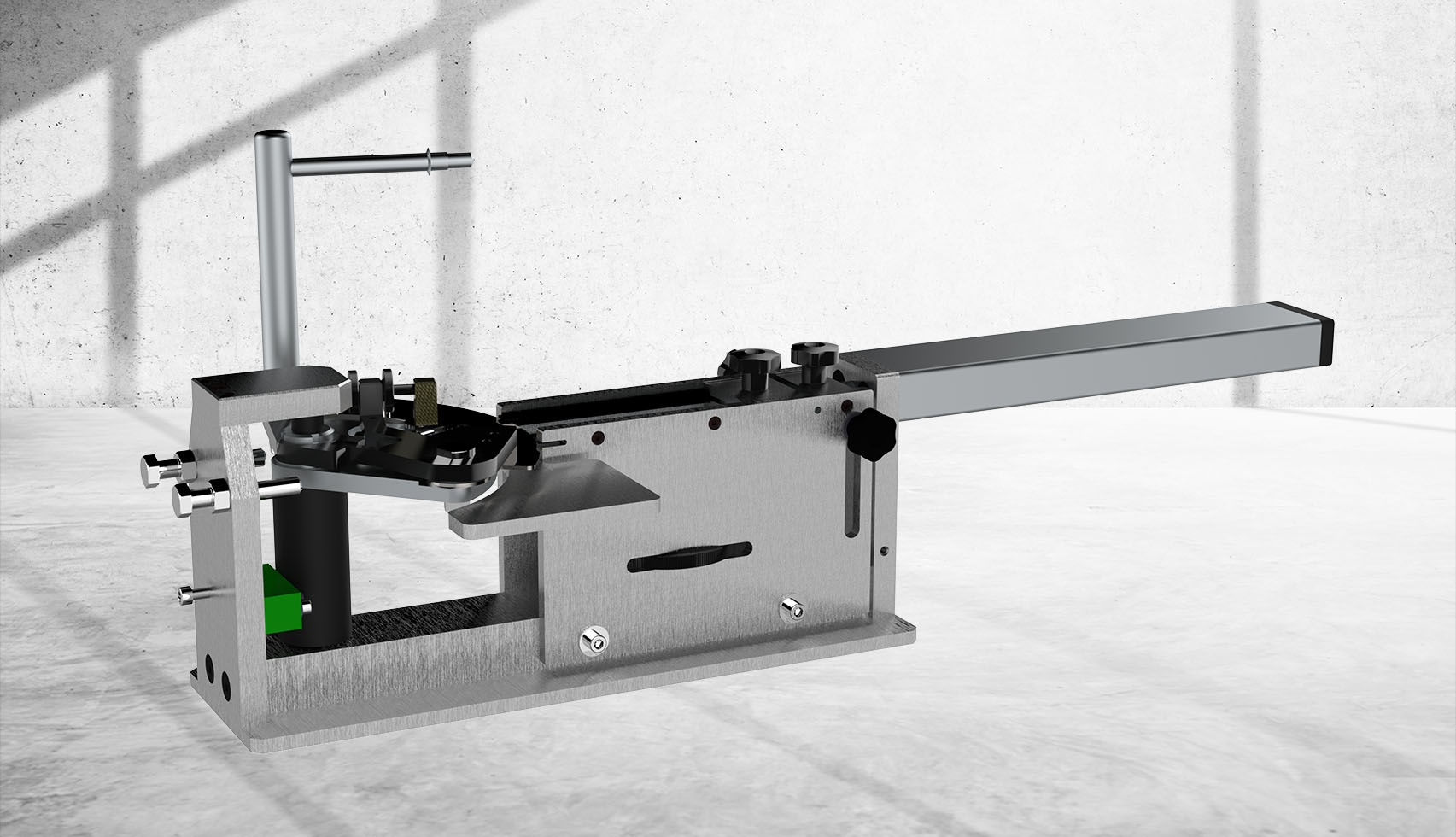

FS 10 / 20 / 30 / 40 - Material Separator horizontal

FS 10 / 20 / 30 / 40 - Material Separator horizontal

Characteristics

The fill material separator allows the separating of small bundles of natural hair and synthetic material for the further handling in brush production.



Features

  • precise fiber separation
  • short changeover timex
  • maximum economy
  • high flexibility
  • simple operation

Technical data

Bundle diameter max. 20 mm (3/4")
Fill material length 20 - 100 mm (0.78" - 3.93")
Weight 10 kg (22 lbs)
Air pressure / air consumption
(only for pneumatic separators)		 min. 6 bar | - m³/h
Dimensions (W x L) 0,45 x 0,25 m (1.47 x 0.82 ft)

* Guideline values – these may vary considerably depending on material specifications.





Separator Typ

Fill material

Separating of material
FS 10 pressured by spring manually
FS 20 pressured by spring pneumatic
FS 30 pneumatic pressure manually
FS 40 pneumatic pressure pneumatic
