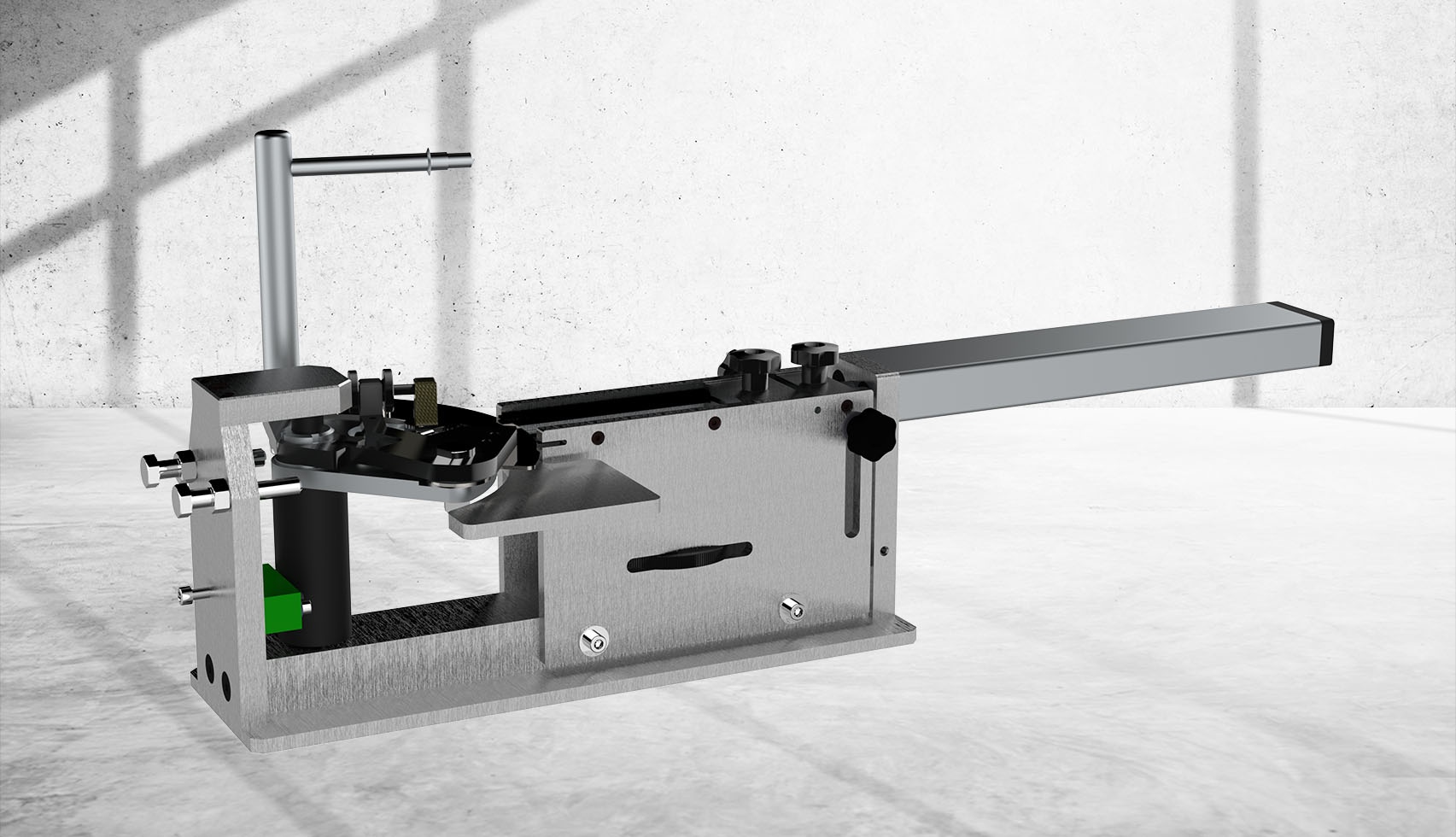

FS 20 - Material separator - pneumatic
Characteristics
The fill material separator allows the separating of small bundles of natural hair and synthetic material for the further handling in brush production.
Features
- precise fiber separation
- short changeover timex
- maximum economy
- high flexibility
- simple operation
Technical data
| Bundle diameter | max. 0.8" (20 mm) |
| Fill material length | 0.8" - 3.9" (20 - 100 mm) |
| Weight | approx. 22 lbs (10 kg) |
| Air pressure / air consumption (ISO 8573-1) | min. 6 bar | - m³/h |
| Dimensions (W x L) | 1.5 x 0.8 ft (0.45 x 0.25 m) |
* Guideline values – these may vary considerably depending on material specifications.
