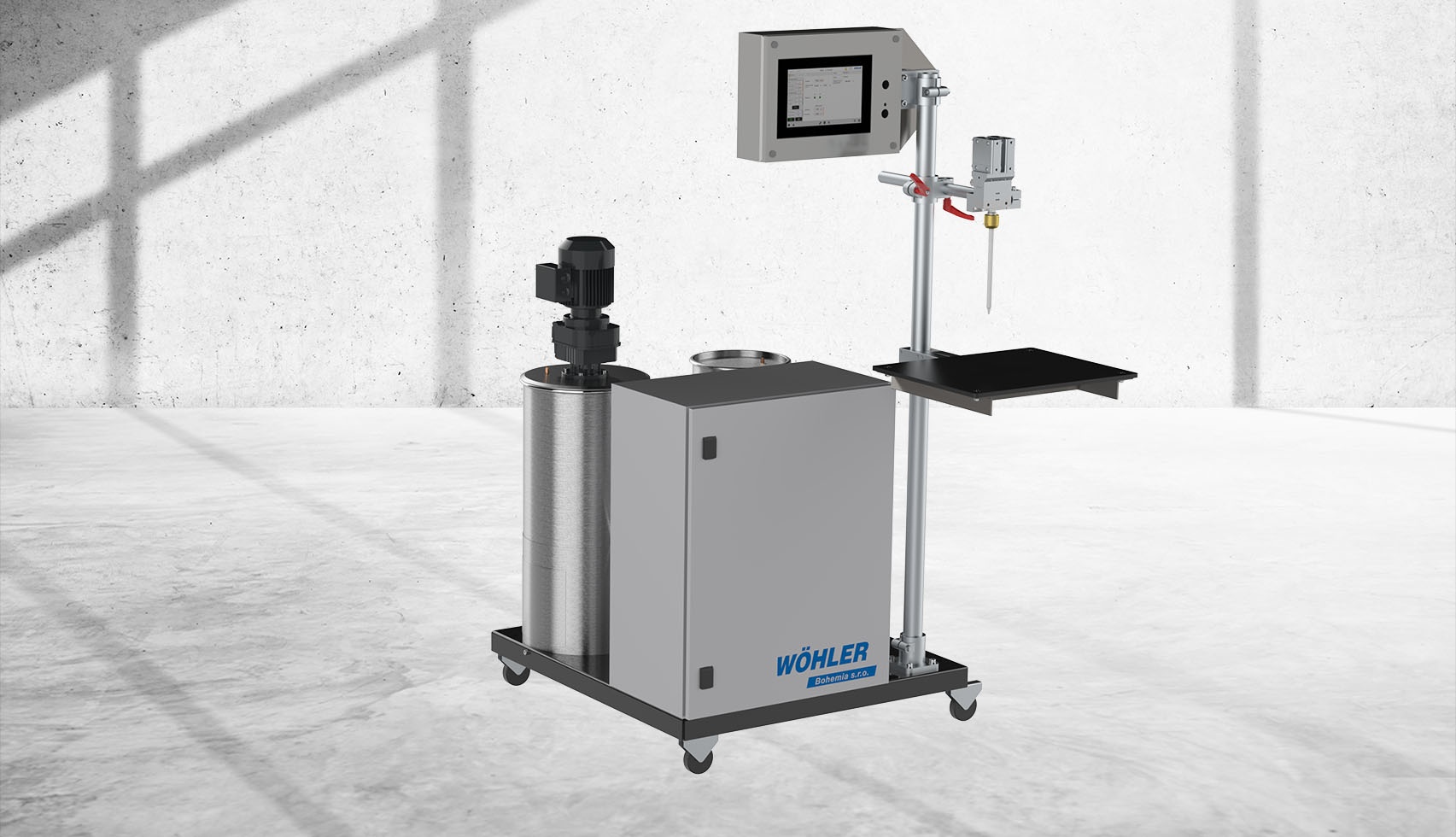

MUD 30



For two or more component systems with a programmable mixing ratio.

By means of two precision gear pumps driven by pulse motors the machine meters.

The following settings are possible at the installed display

• mixing ratio
• dispensing quantity in grams per shot
• setting the speed (flow speed)
• display of the required dispensing time
• 999 recipes can be memorized
• metering and pot time of the safety device (starts a dispensing after the pot time expires)
• calibrating programme to adjust the machine to the different specific weights and viscosities

4 operating modes are possible

• Constant operation (machine dispenses compo-nent A and B as long as the foot switch is actuated).
• Step by step operation (machine dispenses one shot after actuating the foot switch or receiving an external signal).
• Interval operation 1 with automatic turning plate control (machine dispenses component A and B, alternating mixture, dispensing then pause, as long as the foot switch is actuated).
• Interval operation 2 (machine dispenses component A and B after actuating the foot switch, alternating with dispensing and pause and dispensing again, until foot switch is re-actuated).
