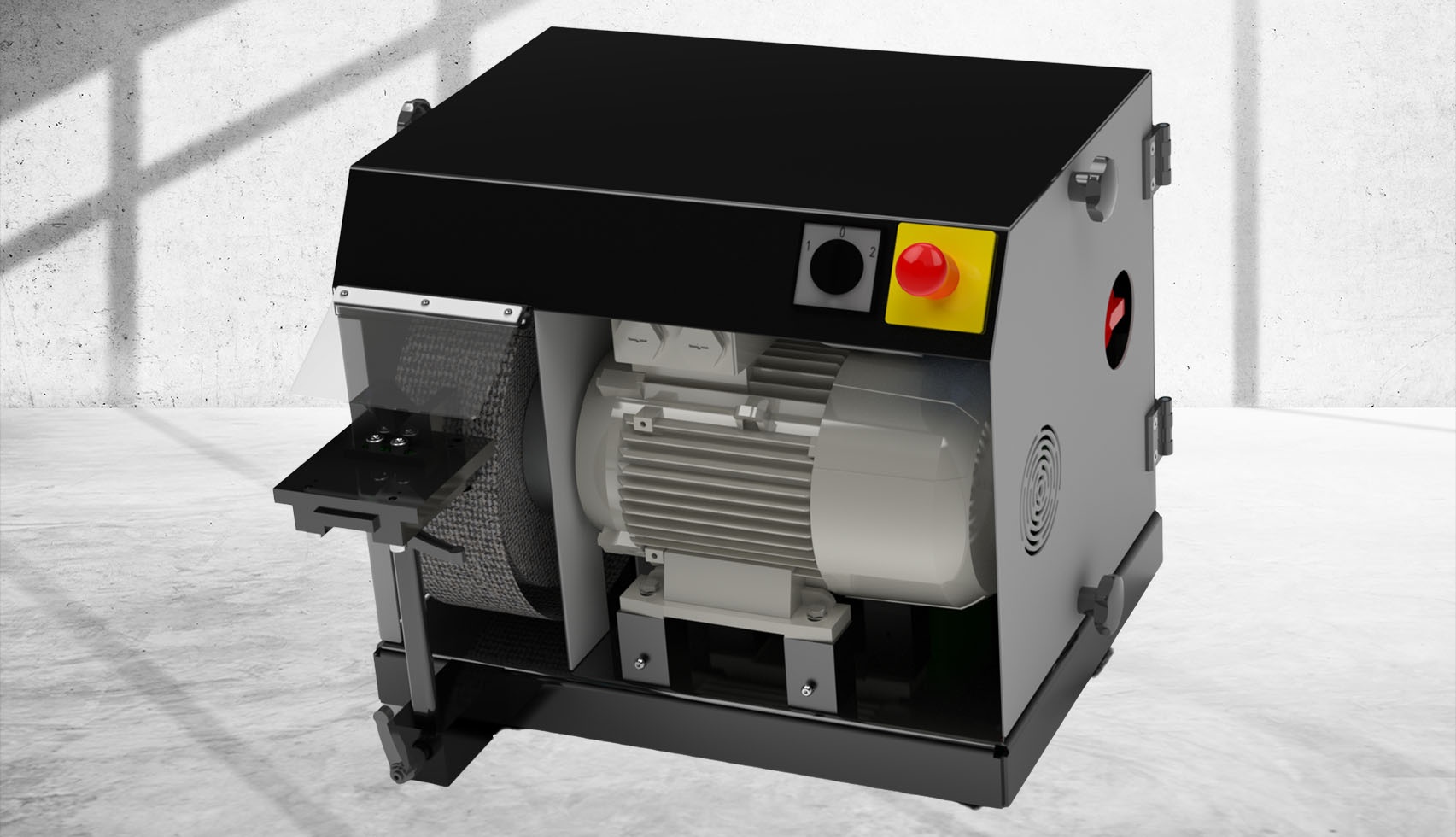

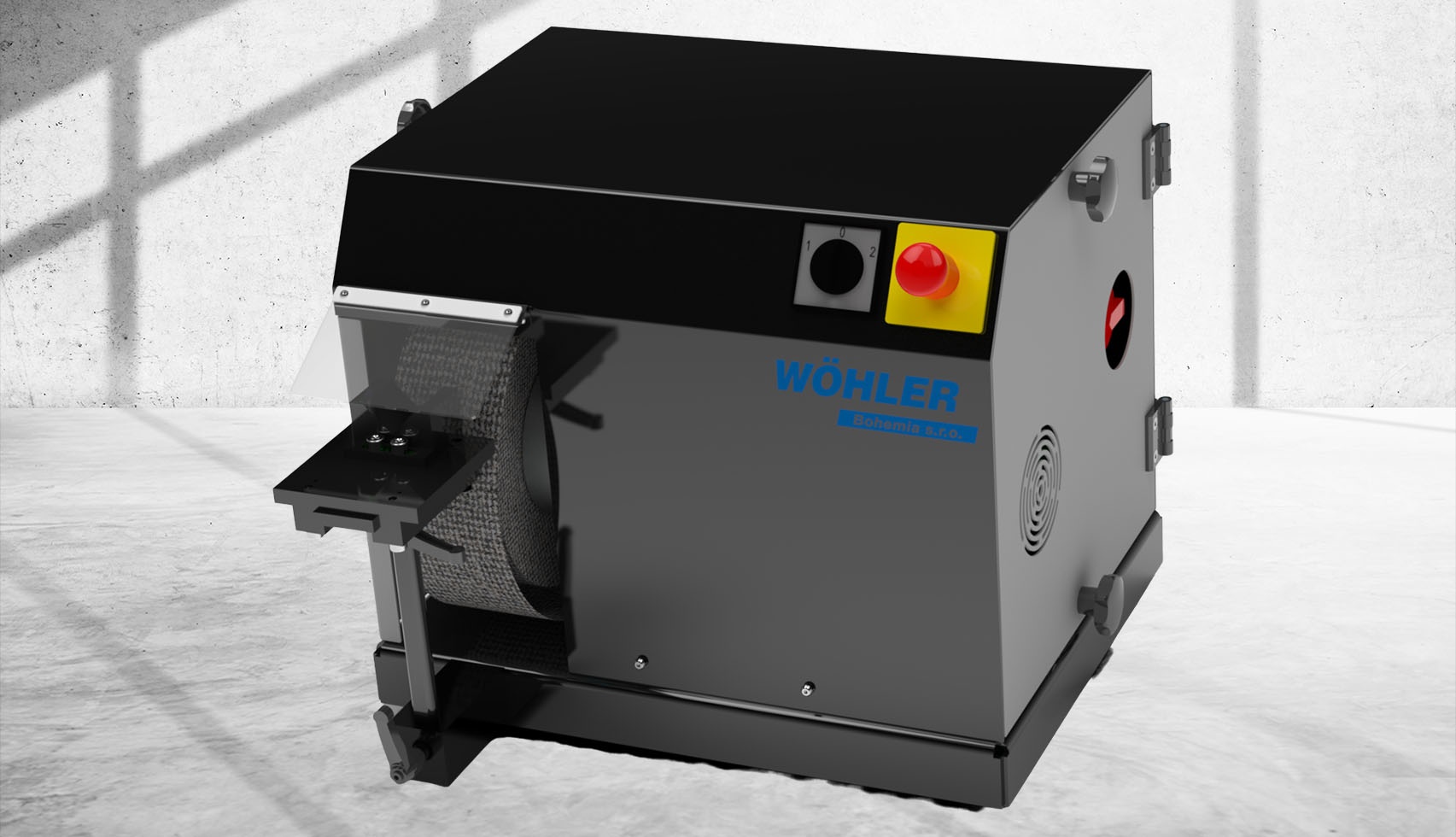

DM 300 - Entgratmaschine
Characteristics
- simply and very quickly deburring all types of profiles (including the inner edges) by a wheel brush
- compared to manual deburring, lower costs due to shorter time and higher deburring quality
- motor starter with undervoltage protection
- effective burr removal
- the possibility of installing an extraction system
Use
Our brushes are fully optimised to the required applications
- deburring brushes with abrasive filaments for the processing of plastics, stainless and aluminium
- deburring brushes with steel or stainless wires for the processing of steel and stainless parts
Technische Daten
| Speed of grinding wheel | 3000 / 1500 U/min |
| Motor power | 2,5 / 3,1 kW |
| Machine weight | 50 kg |
| Machine dimensions ( w x d x h) | 550 x 630 x 450 mm |
Wheel brush dimensions for the machine
| Outer diameter | 250 / 300* mm |
| Width over tube | 50 / 100* mm |
| Brush working width | 60 / 110* mm |
| Clamping hole | ø 50,80 mm |
| Drive grooves | 2 x 12,7 x 6,85 mm |
